KDS2572 - N-Channel UltraFET Trench MOSFET

Key Features

  • RDS(ON) = 0.040 (Typ. ), VGS = 10V Qg(TOT) = 29nC (Typ. ), VGS = 10V Low QRR Body Diode Maximized efficiency at high frequencies UIS Rated Absolute Maximum Ratings Ta = 25 Parameter Drain to Source Voltage Gate to Source Voltage Drain Current Continuous (TC = 25 ).
  • 1 Drain Current Continuous (TC = 100 ).
  • 1 Power dissipation Derate above 25 Operating and Storage Temperature Thermal Resistance Junction to Case Thermal Resistance Junction to Case at 10 seconds.
  • 2 Thermal Resistance Junct.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KDS200 DIODE KEC
KDS201 DIODE KEC
KDS221E SILICON EPITAXIAL PLANAR DIODE KEC
KDS221V SILICON EPITAXIAL PLANAR DIODE KEC
KDS2236M DIODE KEC

Other Datasheets by Kexin Semiconductor

Part Number Description
KDS181-RTR Silicon Epitaxial Planar Diode
KDS3512 80V N-Channel PowerTrench MOSFET
KDS3601 100V Dual N-Channel PowerTrench MOSFET
KDS3912 100V Dual N-Channel PowerTrench MOSFET
KDS4470 40V N-Channel PowerTrench MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

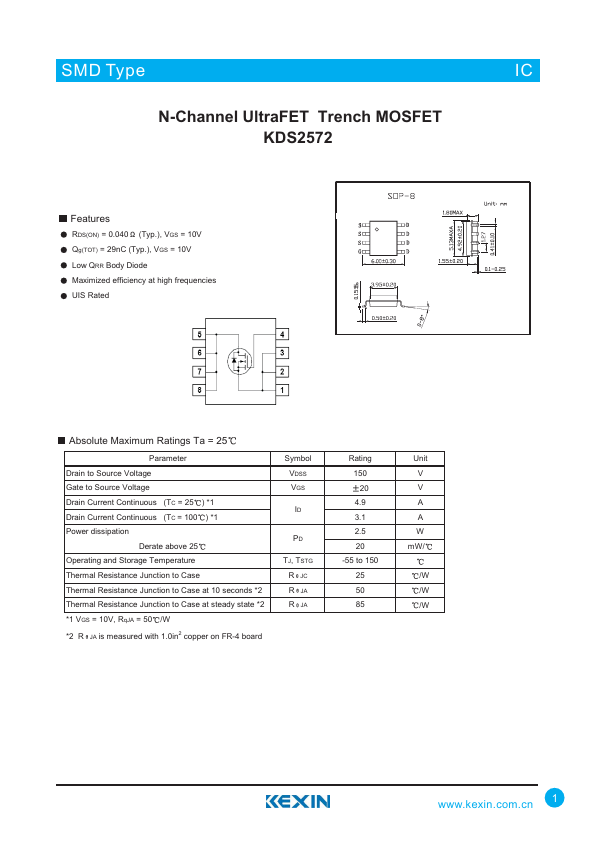

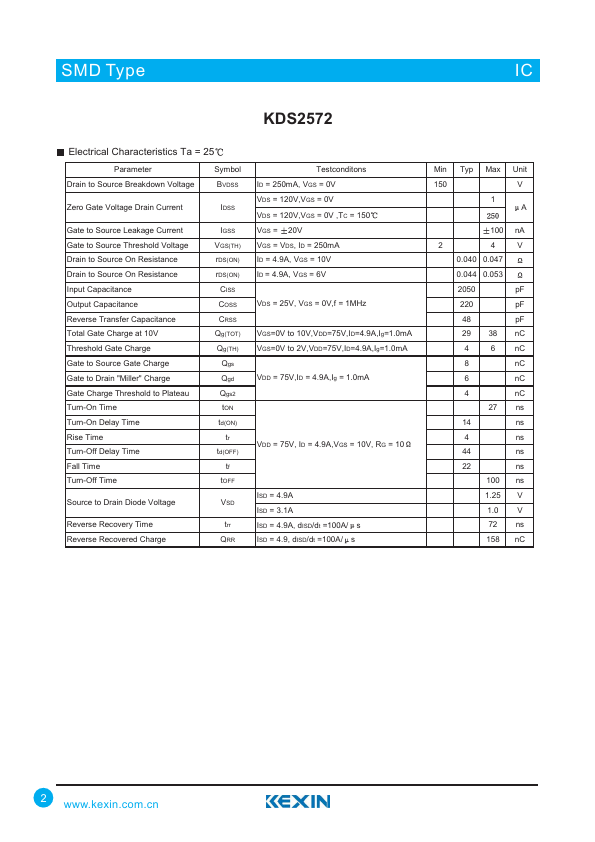

SMD Type ICIC N-Channel UltraFET Trench MOSFET KDS2572 Features RDS(ON) = 0.040 (Typ.), VGS = 10V Qg(TOT) = 29nC (Typ.), VGS = 10V Low QRR Body Diode Maximized efficiency at high frequencies UIS Rated Absolute Maximum Ratings Ta = 25 Parameter Drain to Source Voltage Gate to Source Voltage Drain Current Continuous (TC = 25 ) *1 Drain Current Continuous (TC = 100 ) *1 Power dissipation Derate above 25 Operating and Storage Temperature Thermal Resistance Junction to Case Thermal Resistance Junction to Case at 10 seconds *2 Thermal Resistance Junction to Case at steady state *2 *1 VGS = 10V, RqJA = 50 /W *2 R JA is measured with 1.0in2 copper on FR-4 board Symbol VDSS VGS ID PD TJ, TSTG R JC R JA R JA Rating 150 20 4.9 3.1 2.5 20 -55 to 150 25 50 85 Unit V V A A W mW/ /W /W /W www.
