KDS3601 Datasheet 100v Dual N-channel Powertrench MOSFET

Manufacturer: Kexin Semiconductor

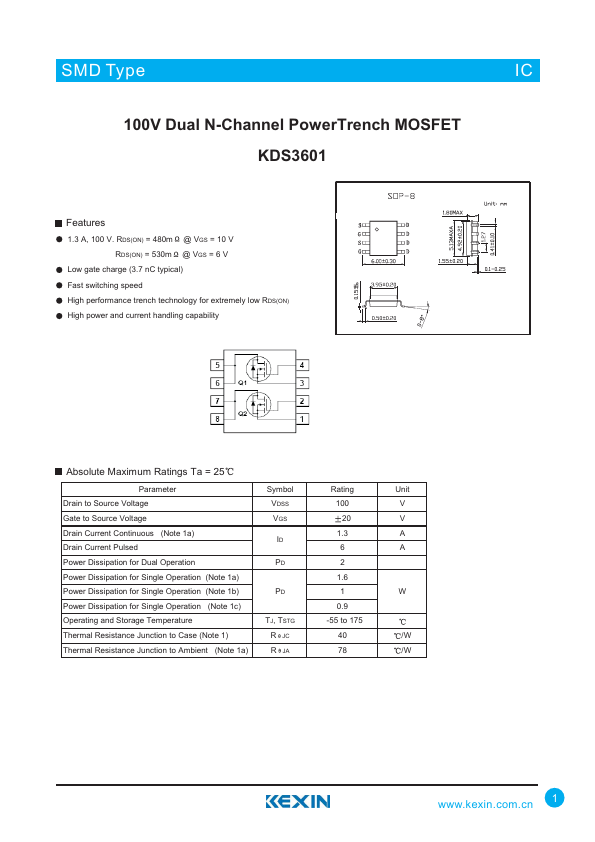

Overview: SMD Type ICIC 100V Dual N-Channel PowerTrench MOSFET KDS3601.

Key Features

  • 1.3 A, 100 V. RDS(ON) = 480m @ VGS = 10 V RDS(ON) = 530m @ VGS = 6 V Low gate charge (3.7 nC typical) Fast switching speed High performance trench technology for extremely low RDS(ON) High power and current handling capability Absolute Maximum Ratings Ta = 25 Parameter Drain to Source Voltage Gate to Source Voltage Drain Current Continuous (Note 1a) Drain Current Pulsed Power Dissipation for Dual Operation Power Dissipation for Single Operation (Note 1a) Power Dissipation for Single Operation.
