KDS6375 - P-Channel 2.5V Specified PowerTrench MOSFET

Key Features

  • -8 A, -20 V. RDS(ON) = 24m @ VGS = -4.5 V RDS(ON) = 32m @ VGS =-2.5V Low gate charge(26nC typical) High performance trench technology for extremely low RDS(ON) High power and current handling capability Absolute Maximum Ratings Ta = 25 Parameter Drain to Source Voltage Gate to Source Voltage Drain Current Continuous (Note 1a) Drain Current Pulsed Power Dissipation for Single Operation (Note 1a) Power Dissipation for Single Operation (Note 1b) Power Dissipation for Single Operation (Note 1c) Op.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KDS Intrusion Switches ITT Industries
KDS112 SILICON EPITAXIAL TYPE DIODE KEC
KDS112E SILICON EPITAXIAL TYPE DIODE KEC
KDS113 SILICON EPITAXIAL TYPE DIODE KEC
KDS114 SILICON EPITAXIAL PLANAR DIODE KEC

Other Datasheets by Kexin Semiconductor

Part Number Description
KDS6685 30V P-Channel PowerTrench MOSFET
KDS6930B Dual N-Channel MOSFET
KDS181-RTR Silicon Epitaxial Planar Diode
KDS2572 N-Channel UltraFET Trench MOSFET
KDS3512 80V N-Channel PowerTrench MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

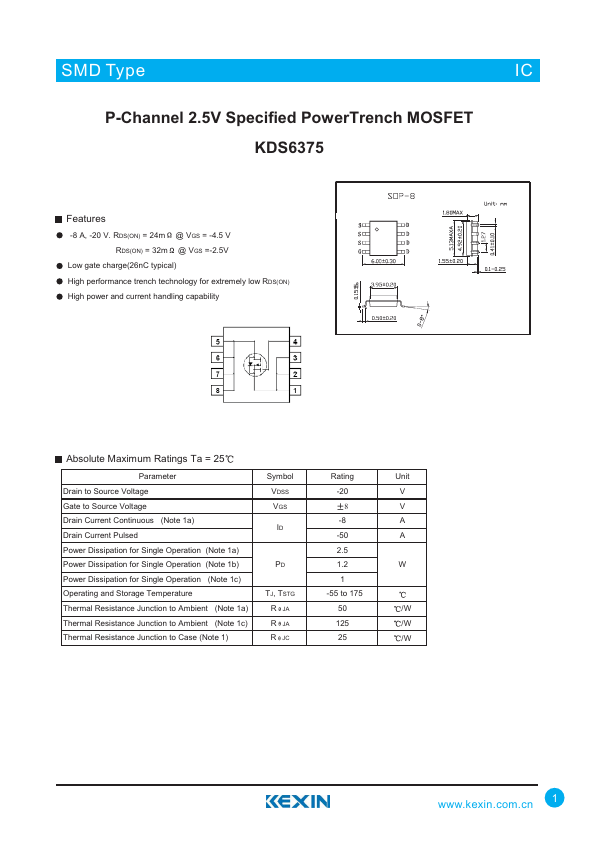

SMD Type ICIC P-Channel 2.5V Specified PowerTrench MOSFET KDS6375 Features -8 A, -20 V. RDS(ON) = 24m @ VGS = -4.5 V RDS(ON) = 32m @ VGS =-2.
