KI1302DL - 30V N-Channel MOSFET

Key Features

  • 1 Gate 2 Source 3 Drain Absolute Maximum Ratings Ta = 25 Parameter Drain-source voltage Gate-source voltage Continuous drain current (TJ = 150 ) TA=25 -- TA=70 Pulsed drain current Continuous source current (diode conduction).
  • Power dissipation.
  • -- TA=25 TA=70 Operating junction and storage temperature range.
  • Surface Mounted on 1" X 1" FR4 Board. Symbol VDS VGS ID IDM IS PD Tj,Tstg 5 secs Steady State Unit 30 V 20 V 0.64 0.60 0.51 0.48 A 1.5 A 0.26 0.2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KI1304BDL 30V N-Channel MOSFET
KI138K N-Channel MOSFET
KI10N03 N-Channel MOSFET
KI10N06DY N-Channel MOSFET
KI10P40DY P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

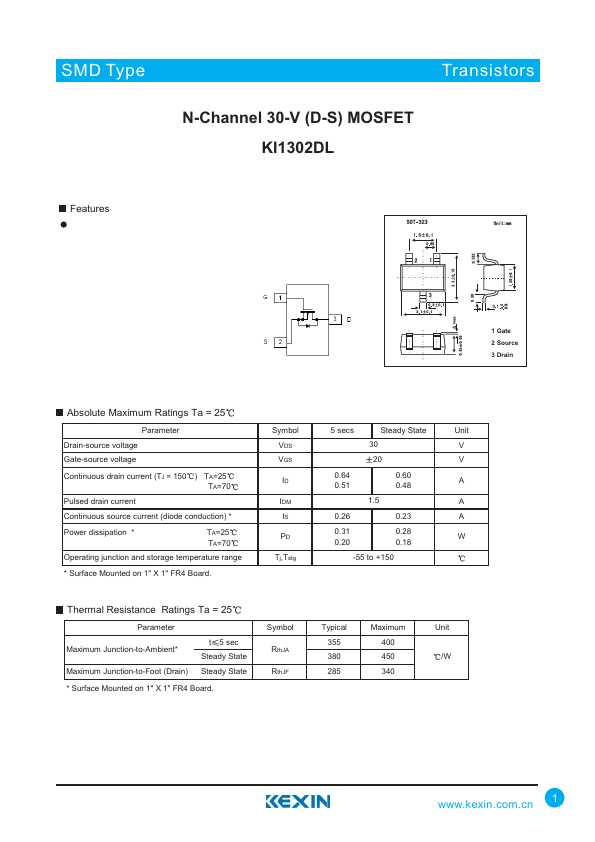

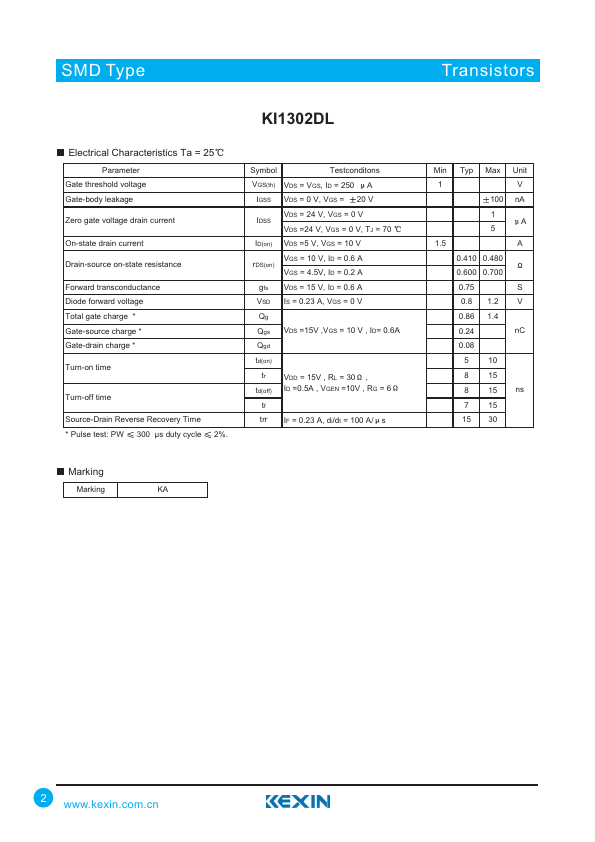

SMD Type TransistIoCrs N-Channel 30-V (D-S) MOSFET KI1302DL Features 1 Gate 2 Source 3 Drain Absolute Maximum Ratings Ta = 25 Parameter Drain-source voltage Gate-source voltage Continuous drain current (TJ = 150 ) TA=25 -- TA=70 Pulsed drain current Continuous source current (diode conduction) * Power dissipation * -- TA=25 TA=70 Operating junction and storage temperature range * Surface Mounted on 1" X 1" FR4 Board. Symbol VDS VGS ID IDM IS PD Tj,Tstg 5 secs Steady State Unit 30 V 20 V 0.64 0.60 0.51 0.48 A 1.5 A 0.26 0.23 A 0.31 0.20 0.28 0.
