KI1304BDL - 30V N-Channel MOSFET

Key Features

  • TrenchFET Power MOSFET 100% Rg Tested Absolute Maximum Ratings Ta = 25 Parameter Drain-source voltage Gate-source voltage Continuous drain current (TJ = 150 ) Tc=25 -- Tc=70 Continuous drain current (TJ = 150 ) Ta=25 -- Ta=70 Pulsed drain current Continuous Source Drain Diode Current Tc=25 Ta=25 Symbol Rating Unit VDS 30 V VGS 12 V ID 0.90 0.71 A ID 0.85.
  • 1,2 0.68.
  • 1,2 A IDM A 0.31 IS A 0.28 Power dissipation -- Tc=25 Tc=70 PD 0.37 0.24 W Power dissi.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KI1302DL 30V N-Channel MOSFET
KI138K N-Channel MOSFET
KI10N03 N-Channel MOSFET
KI10N06DY N-Channel MOSFET
KI10P40DY P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

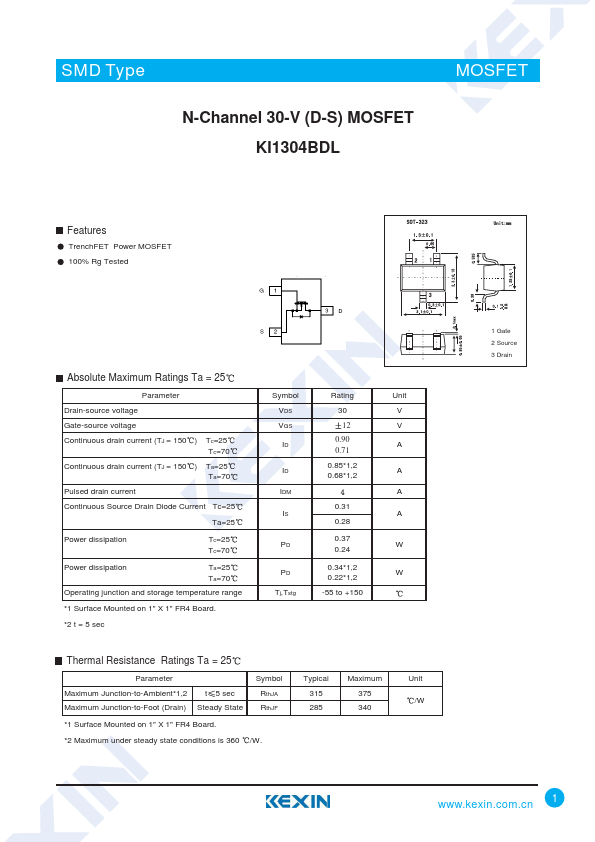

SMD Type N-Channel 30-V (D-S) MOSFET KI1304BDL MOSFEICT Features TrenchFET Power MOSFET 100% Rg Tested Absolute Maximum Ratings Ta = 25 Parameter Drain-source voltage Gate-source voltage Continuous drain current (TJ = 150 ) Tc=25 -- Tc=70 Continuous drain current (TJ = 150 ) Ta=25 -- Ta=70 Pulsed drain current Continuous Source Drain Diode Current Tc=25 Ta=25 Symbol Rating Unit VDS 30 V VGS 12 V ID 0.90 0.71 A ID 0.85*1,2 0.68*1,2 A IDM A 0.31 IS A 0.28 Power dissipation -- Tc=25 Tc=70 PD 0.37 0.24 W Power dissipation -- Ta=25 Ta=70 PD 0.34*1,2 0.22*1,2 W Operating junction and storage temperature range Tj,Tstg -55 to +150 *1 Surface Mounted on 1" X 1" FR4 Board.
