KRF7410 - Power MOSFET

Key Features

  • Ultra Low On-Resistance P-Channel MOSFET Surface Mount Available in Tape & Reel ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol Drain- Source Voltage VDS Continuous Drain Current, VGS @ -4.5V @ Ta = 25 ID Continuous Drain Current, VGS @ -4.5V @ Ta = 70 ID Pulsed Drain Current.
  • 1 IDM Power Dissipation.
  • 2 @Ta= 25 PD Power Dissipation.
  • 2 @Ta = 70 PD Linear Derating Factor Gate-to-Source Voltage VGS Junction and Storage Temperature Range TJ, TSTG Maximum Ju.

📥 Download Datasheet

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

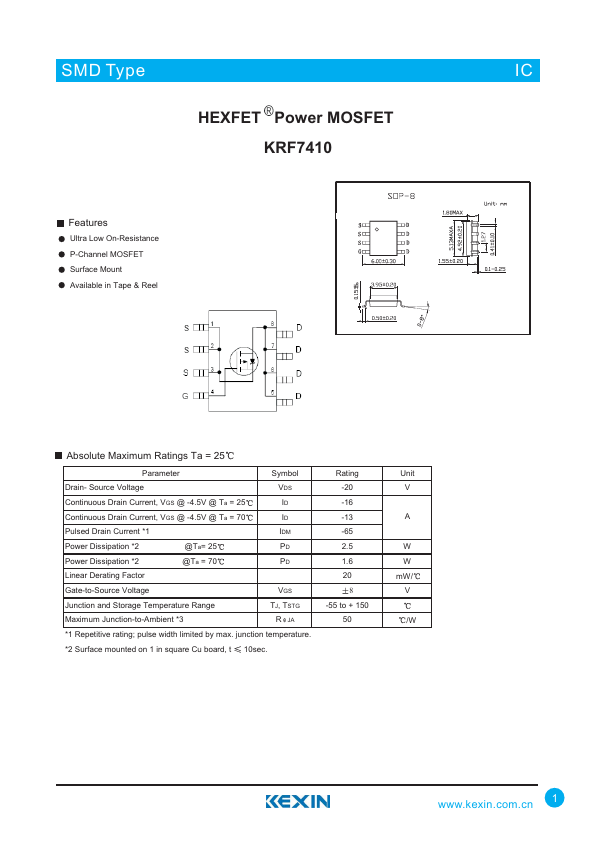

SMD Type HEXFET Power MOSFET KRF7410 Features Ultra Low On-Resistance P-Channel MOSFET Surface Mount Available in Tape & Reel ICIC Absolute Maximum Ratings Ta = 25 Parameter Symbol Drain- Source Voltage VDS Continuous Drain Current, VGS @ -4.5V @ Ta = 25 ID Continuous Drain Current, VGS @ -4.5V @ Ta = 70 ID Pulsed Drain Current *1 IDM Power Dissipation *2 @Ta= 25 PD Power Dissipation *2 @Ta = 70 PD Linear Derating Factor Gate-to-Source Voltage VGS Junction and Storage Temperature Range TJ, TSTG Maximum Junction-to-Ambient *3 R JA *1 Repetitive rating; pulse width limited by max. junction temperature. *2 Surface mounted on 1 in square Cu board, t 10sec. Rating -20 -16 -13 -65 2.5 1.6 20 8 -55 to + 150 50 Unit V A W W mW/ V /W www.kexin.com.
