KRF7706 Datasheet Power MOSFET

Manufacturer: Kexin Semiconductor

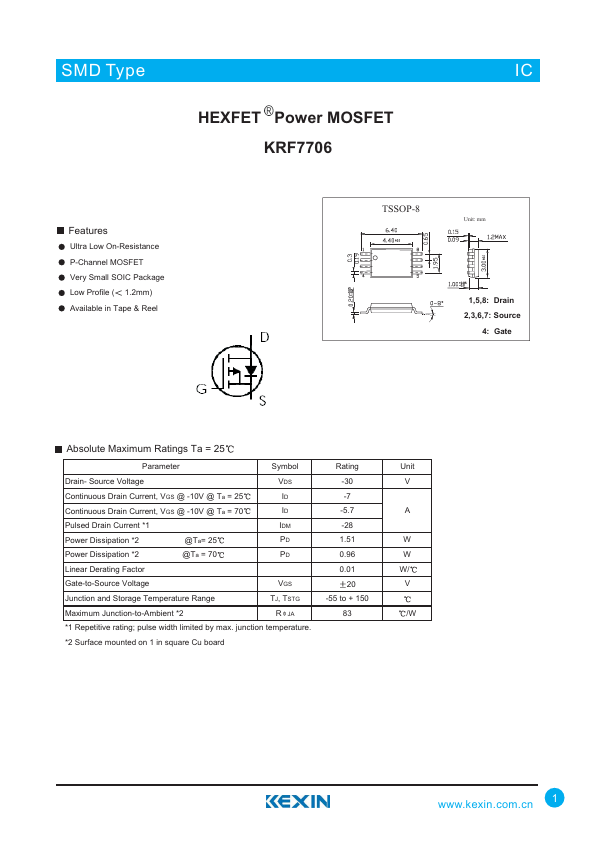

Overview: SMD Type ICIC HEXFET Power MOSFET KRF7706.

Key Features

  • Ultra Low On-Resistance P-Channel MOSFET Very Small SOIC Package Low Profile ( 1.2mm) Available in Tape & Reel TSSOP-8 Unit: mm 1,5,8: Drain 2,3,6,7: Source 4: Gate Absolute Maximum Ratings Ta = 25 Parameter Symbol Drain- Source Voltage VDS Continuous Drain Current, VGS @ -10V @ Ta = 25 ID Continuous Drain Current, VGS @ -10V @ Ta = 70 ID Pulsed Drain Current.
  • 1 IDM Power Dissipation.
  • 2 @Ta= 25 PD Power Dissipation.
  • 2 @Ta = 70 PD Linear Derating Factor Gate-to-S.
