SI2303DS - P-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • RDS(ON) < 200mΩ (VGS =-10V).
  • RDS(ON) < 380mΩ (VGS =-4.5V) G1 S2 3D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ =150℃).
  • 1 Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power Diss.

📥 Download Datasheet

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

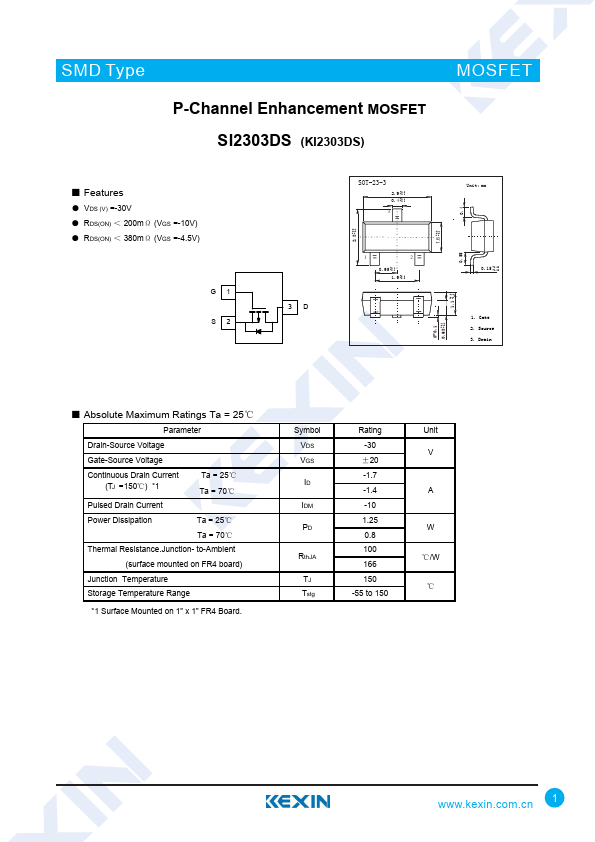

SMD Type P-Channel Enhancement MOSFET SI2303DS (KI2303DS) MOSFET ■ Features ● VDS (V) =-30V ● RDS(ON) < 200mΩ (VGS =-10V) ● RDS(ON) < 380mΩ (VGS =-4.5V) G1 S2 3D +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ =150℃) *1 Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power Dissipation Ta = 25℃ Ta = 70℃ Thermal Resistance.Junction- to-Ambient (surface mounted on FR4 board) Junction Temperature Storage Temperature Range *1 Surface Mounted on 1” x 1” FR4 Board.
