SI2308DS - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 2 A (VGS = 10V).
  • RDS(ON) ＜ 160mΩ (VGS = 10V).
  • RDS(ON) ＜ 220mΩ (VGS = 4.5V) +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.2 1.1 -0.1 G1 S2 3D 0-0.1 +0.1 0.68 -0.1 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Ta=25℃ Ta=70℃ Powe.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2308DS N-Channel MOSFET Vishay Siliconix
SI2308 N-Channel 60V MOSFET VBsemi
SI2308 N-Channel Enhancement Mode Field Effect Transistor SiPU
SI2308A 60V N-ChanneI MOSFET UMW
SI2308BDS N-Channel MOSFET Vishay

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET
SI2301DS P-Channel MOSFET
SI2301DS-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

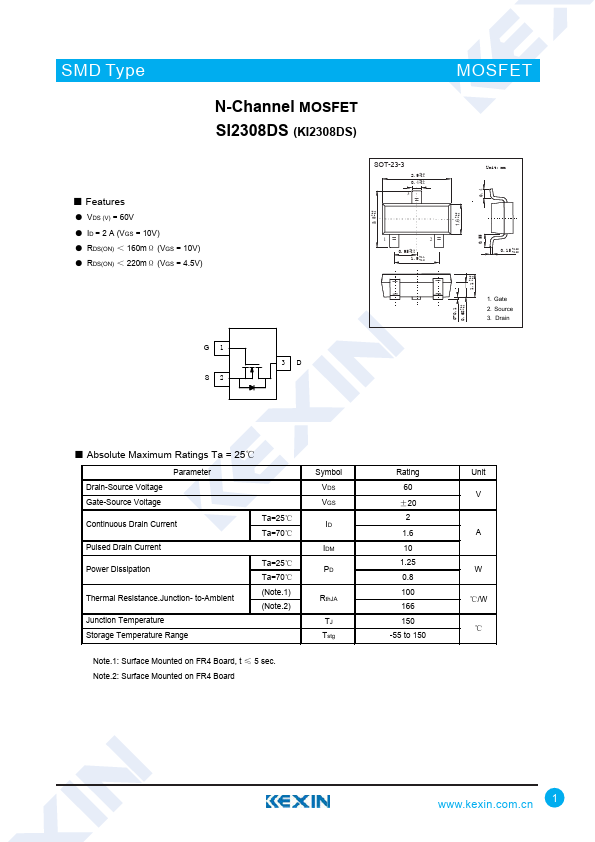

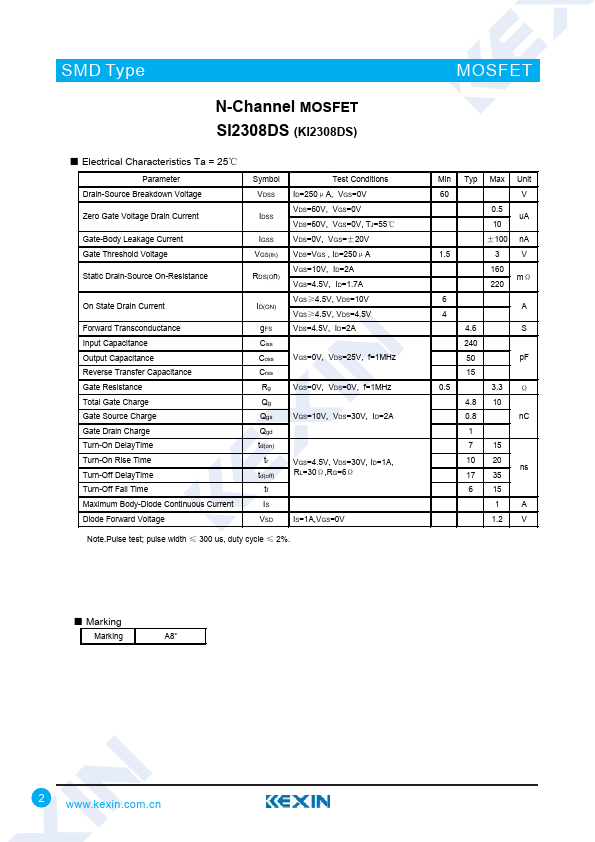

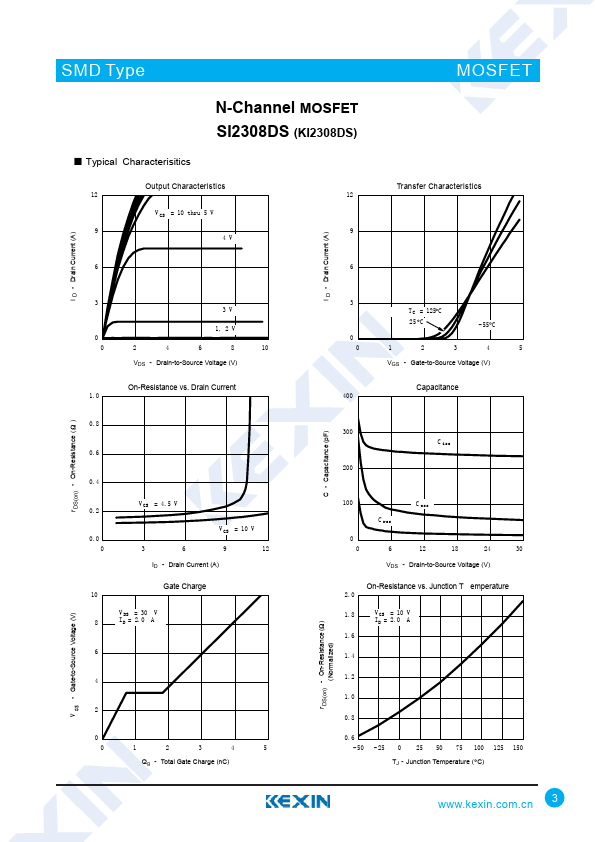

SMD Type MOSFET N-Channel MOSFET SI2308DS (KI2308DS) ■ Features ● VDS (V) = 60V ● ID = 2 A (VGS = 10V) ● RDS(ON) ＜ 160mΩ (VGS = 10V) ● RDS(ON) ＜ 220mΩ (VGS = 4.5V) +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.2 1.1 -0.1 G1 S2 3D 0-0.1 +0.1 0.68 -0.1 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Ta=25℃ Ta=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range Ta=25℃ Ta=70℃ (Note.1) (Note.2) Note.1: Surface Mounted on FR4 Board, t ≤ 5 sec. Note.
