SI2328DS - N-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) = 100V.
  • ID = 1.5 A (VGS = 10V).
  • RDS(ON) ＜ 250mΩ (VGS = 4.5V) G1 S2 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 3D 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current.
  • 1 Ta=25℃ Ta=70℃ Pulsed Drain Current.
  • 2 Avalanche Current.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2328DS N-Channel MOSFET Vishay Siliconix
Si2328 N-Channel MOSFET Tuofeng
SI2320DS N-Channel MOSFET Vishay Siliconix
SI2321 P-Channel MOSFET MCC
SI2321 P-CHANNEL MOSFET BLUE ROCKET ELECTRONICS

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2324DS N-Channel Enhancement MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET
SI2301DS P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

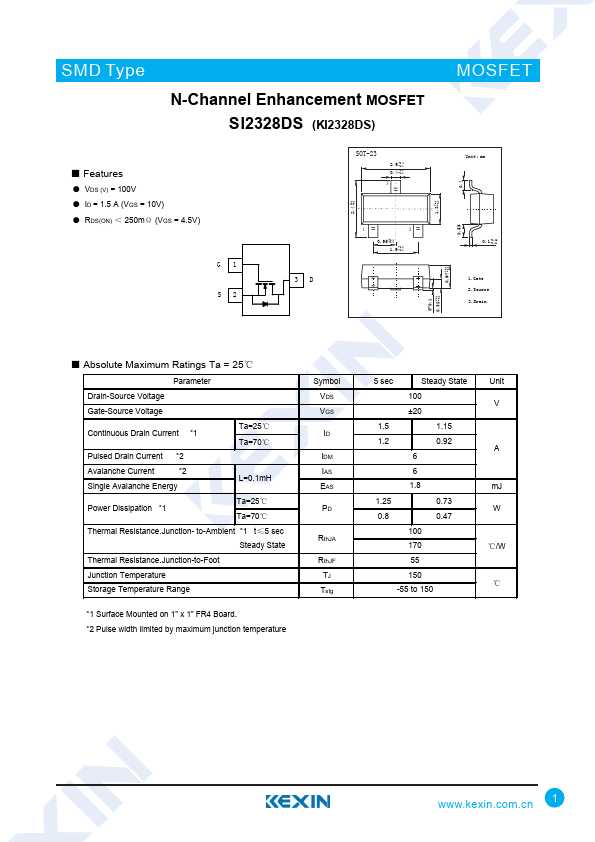

SMD Type N-Channel Enhancement MOSFET SI2328DS (KI2328DS) ■ Features ● VDS (V) = 100V ● ID = 1.5 A (VGS = 10V) ● RDS(ON) ＜ 250mΩ (VGS = 4.5V) G1 S2 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 3D 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current *1 Ta=25℃ Ta=70℃ Pulsed Drain Current *2 Avalanche Current *2 Single Avalanche Energy L=0.1mH Power Dissipation *1 Ta=25℃ Ta=70℃ Thermal Resistance.Junction- to-Ambient *1 t≤5 sec Steady State Thermal Resistance.
