SI2323DS - P-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-4.7A (VGS =-4.5V).
  • RDS(ON) ＜ 39mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 52mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 68mΩ (VGS =-1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta =.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2323DS P-Channel MOSFET Vishay Siliconix
Si2323DDS 20V P-Channel MOSFET Vishay
Si2323CDS P-Channel MOSFET Vishay
SI2320DS N-Channel MOSFET Vishay Siliconix
SI2321 P-Channel MOSFET MCC

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2321DS P-Channel Enhancement MOSFET
SI2324DS N-Channel Enhancement MOSFET
SI2325DS P-Channel Enhancement MOSFET
SI2328DS N-Channel Enhancement MOSFET
SI2300 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

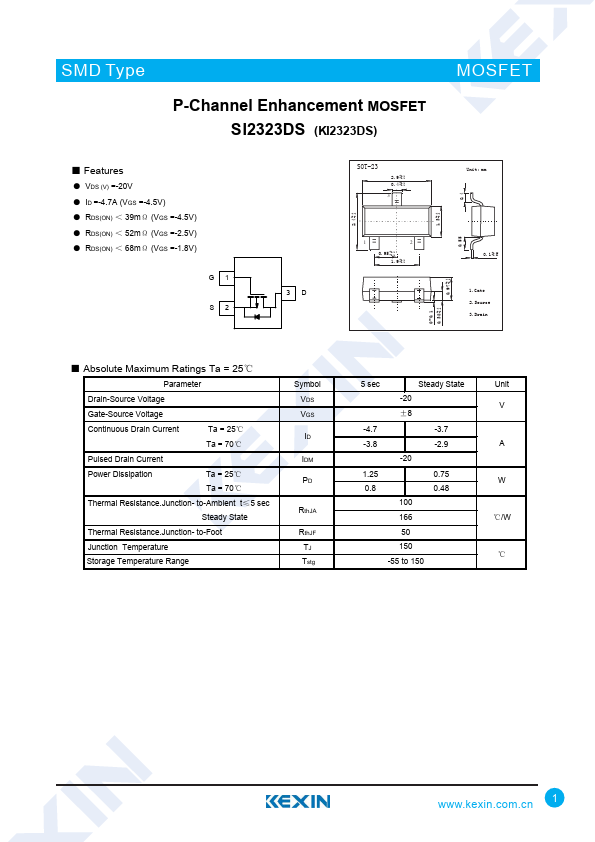

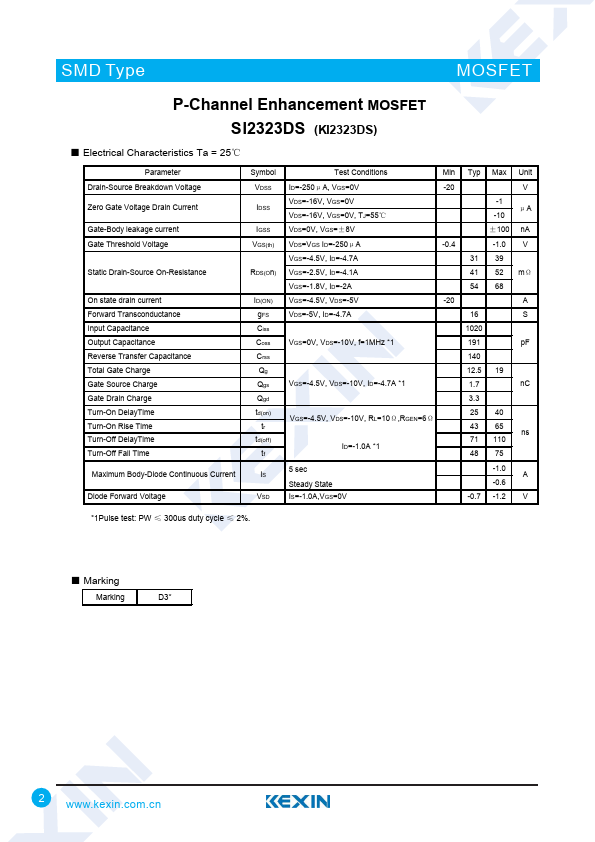

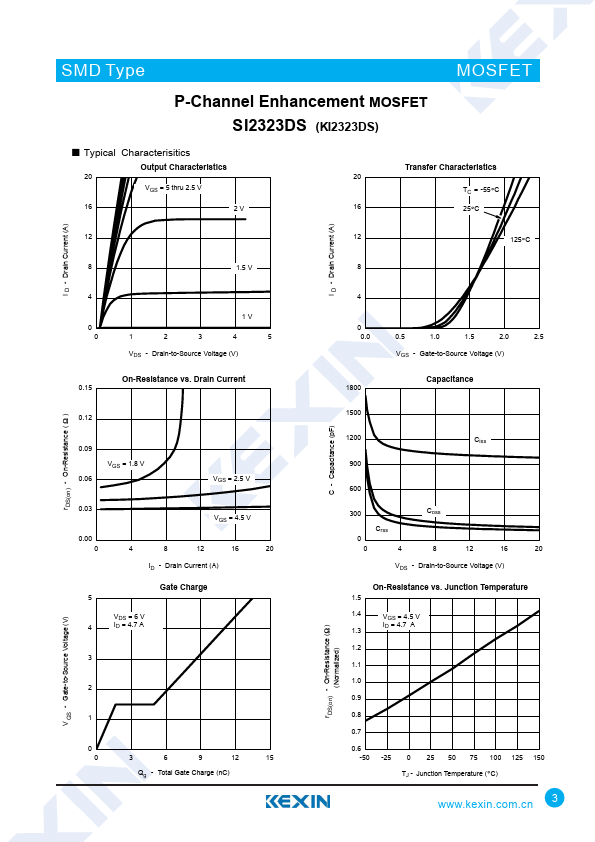

SMD Type P-Channel Enhancement MOSFET SI2323DS (KI2323DS) ■ Features ● VDS (V) =-20V ● ID =-4.7A (VGS =-4.5V) ● RDS(ON) ＜ 39mΩ (VGS =-4.5V) ● RDS(ON) ＜ 52mΩ (VGS =-2.5V) ● RDS(ON) ＜ 68mΩ (VGS =-1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25℃ Ta = 70℃ Pulsed Drain Current Power Dissipation Ta = 25℃ Ta = 70℃ Thermal Resistance.Junction- to-Ambient t≤5 sec Steady State Thermal Resistance.
