SI2333DS - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-12V.
  • ID =-5.3 A (VGS =-4.5V).
  • RDS(ON) ＜ 32mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 42mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 59mΩ (VGS =-1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA = 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Si2333DS 12V P-Channel MOSFET Vishay
SI2333DS-T1-GE3 20V P-Channel MOSFET VBsemi
SI2333 P-ChannelEnhancement Mode Power MOSFET PUOLOP
SI2333 P-Channel Enhancement Mode Field Effect Transistor MCC
SI2333CDS -12V P-ChanneI MOSFET UMW

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2333CDS P-Channel Enhancement MOSFET
SI2335DS P-Channel Enhancement MOSFET
SI2337DS P-Channel Enhancement MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

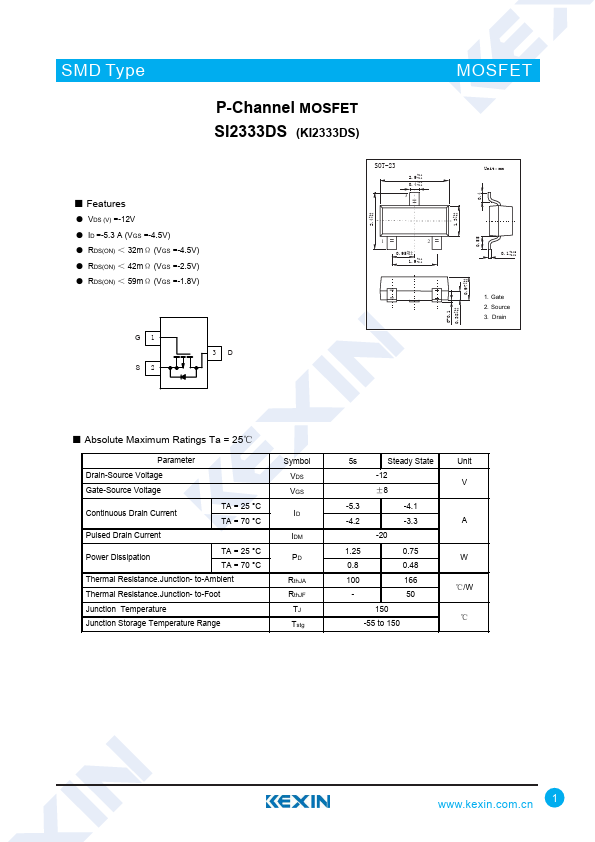

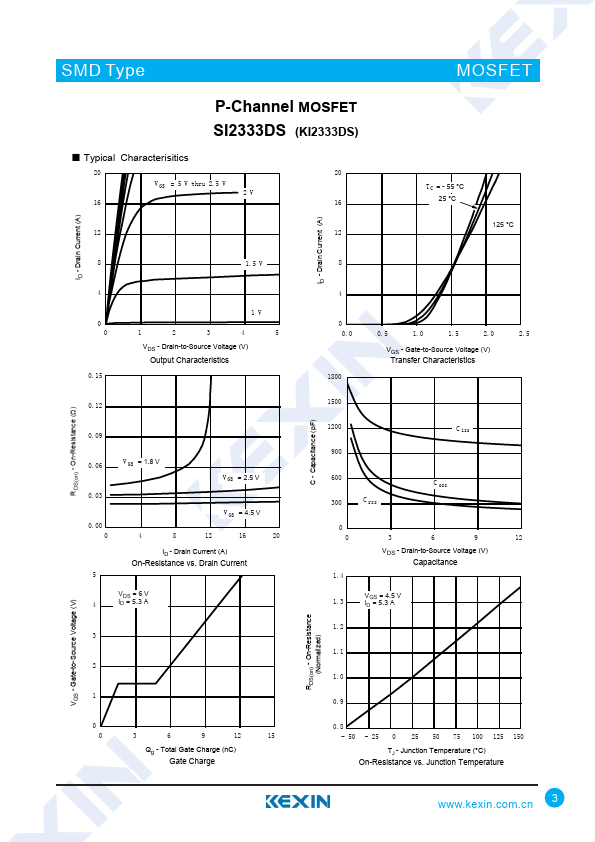

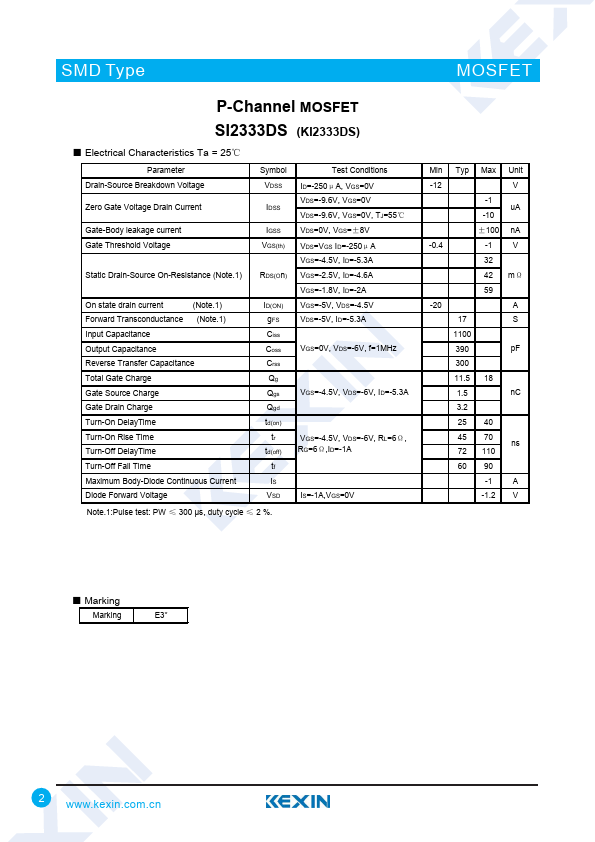

SMD Type MOSFET P-Channel MOSFET SI2333DS (KI2333DS) ■ Features ● VDS (V) =-12V ● ID =-5.3 A (VGS =-4.5V) ● RDS(ON) ＜ 32mΩ (VGS =-4.5V) ● RDS(ON) ＜ 42mΩ (VGS =-2.5V) ● RDS(ON) ＜ 59mΩ (VGS =-1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current TA = 25 °C TA = 70 °C Pulsed Drain Current Power Dissipation TA = 25 °C TA = 70 °C Thermal Resistance.Junction- to-Ambient Thermal Resistance.
