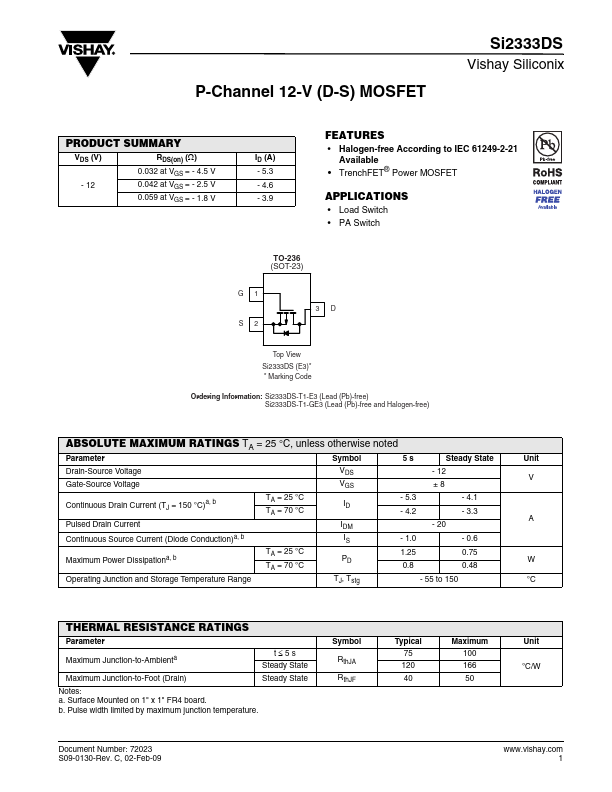

P-Channel 12-V (D-S) MOSFET
Si2333DS
Vishay Siliconix
PRODUCT SUMMARY
VDS (V) - 12
RDS(on) (Ω) 0.032 at VGS = - 4.5 V 0.042 at VGS = - 2.5 V 0.059 at VGS = - 1.8 V
ID (A) - 5.3 - 4.6 - 3.9
FEATURES • Halogen-free According to IEC 61249-2-21
Available • TrenchFET® Power MOSFET
APPLICATIONS • Load Switch • PA Switch
TO-236 (SOT-23)
G1 S2
3D
Top View Si2333DS (E3)* * Marking Code
Ordering Information: Si2333DS-T1-E3 (Lead (Pb)-free) Si2333DS-T1-GE3 (Lead (Pb)-free and Halogen-free)
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
5s
Steady State
Unit
Drain-Source Voltage Gate-Source Voltage
VDS
- 12
V
VGS
±8
Continuous Drain Current (TJ = 150 °C)a, b
TA = 25 °C TA = 70 °C
ID
- 5.3 - 4.2
- 4.1 - 3.
