ML5233 - Cell Li-ion Rechargeable Battery Protection IC

Datasheet Summary

Description

The ML5233 is a protection IC for the 4- to 10-cell Li-ion rechargeable battery pack.

It detects individual cell overvoltage/undervoltage and the pack overcurrent/over-temperature, and then automatically turns on or turns off the external charge/discharge NMOS-FETs accordingly.

Features

  • s.
  • 4 to 10 cell high-precision overvoltage and undervoltage detection function Voltage monitoring function for individual cells Overvoltage detection threshold 4.25 V, Detection accuracy: ±15 mV (max) Undervoltage detection threshold 2.7 V, Detection accuracy: ±50 mV (max).
  • Overcurrent detection function Discharge overcurrent detection threshold Charge overcurrent detection threshold 150 mV, Detection accuracy: ±10 mV (max) -40 mV, Detection accuracy: ±15 mV (max).

📥 Download Datasheet

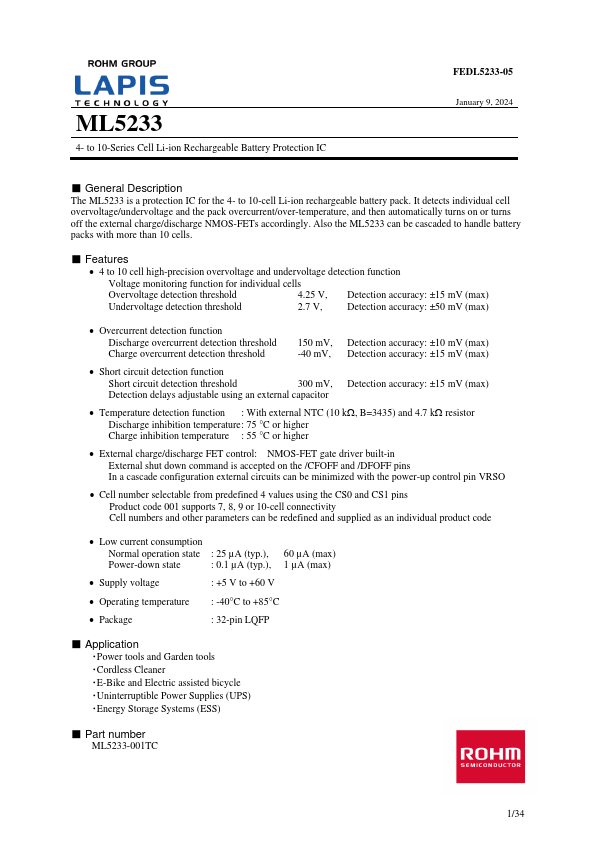

Datasheet preview – ML5233

Datasheet Details

Part number ML5233
Manufacturer LAPIS
File Size 671.30 KB
Description Cell Li-ion Rechargeable Battery Protection IC
Datasheet download datasheet ML5233 Datasheet

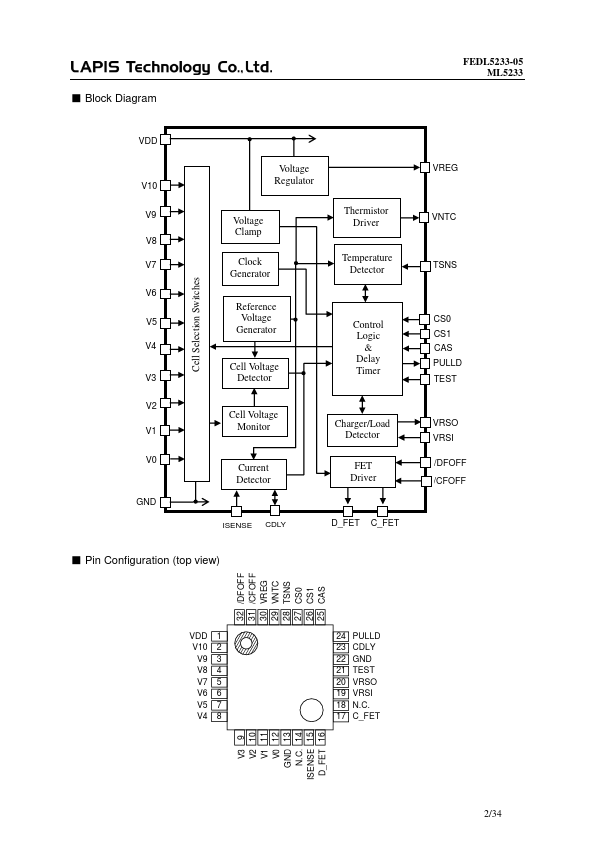

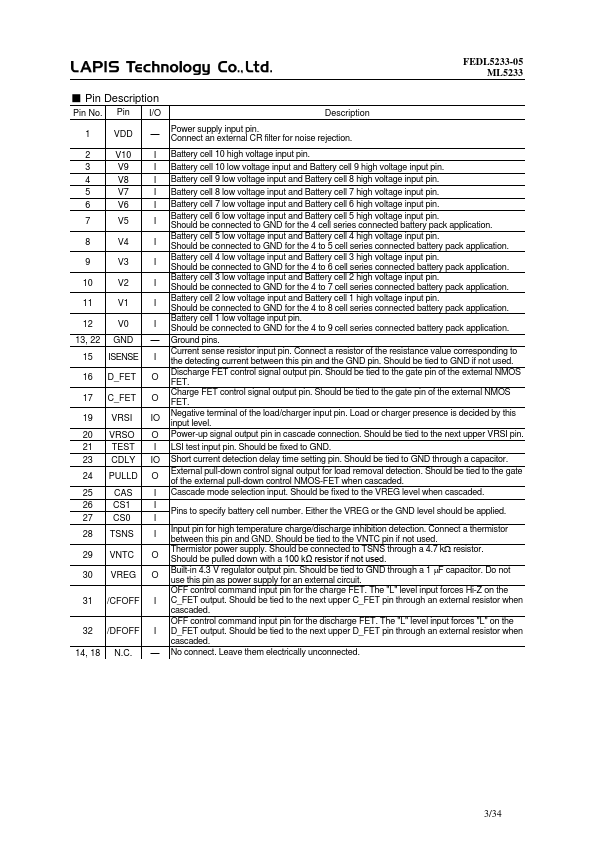

Additional preview pages of the ML5233 datasheet.

📁 Similar Datasheet

  • ML520G54 - LASER DIODES (Mitsubishi)
  • ML524B - MEASURING RECEIVER (Anritsu)
  • ML529P54 - LASER DIODES (Mitsubishi)
  • ML501 - 1.9-2.7 GHz High IP3 Mixer (WJ Communication)
  • ML501P73 - LASER DIODES (Mitsubishi Electric Semiconductor)
  • ML5041-HD-YG-C - HOLE LED (MIC)
  • ML53612 - 64-Channel Full Duplex H.100/H.110 CT Bus System Interface and Time-Slot Interchange (OKI electronic componets)
  • ML53812-2 - H.100/H.110 CT Bus System Interface and Time-Slot Interchange (OKI electronic componets)
  • ML54051 - NAND Flash Memory Controller (OKI electronic)
  • ML54053 - NAND Flash Memory Controller (OKI electronic)
Other Datasheets by LAPIS
  • ML5236 - Analog Front-End IC
  • ML5238 - Li-ion secondary battery protection / Analog Front End IC
  • ML5206 - Cell Li-ion Rechargeable Battery Protection IC
  • ML5245 - Cell Rechargeable Battery Protection IC

Full PDF Text Transcription

Click to expand full text
ML5233 4- to 10-Series Cell Li-ion Rechargeable Battery Protection IC FEDL5233-05 January 9, 2024 ■ General Description The ML5233 is a protection IC for the 4- to 10-cell Li-ion rechargeable battery pack. It detects individual cell overvoltage/undervoltage and the pack overcurrent/over-temperature, and then automatically turns on or turns off the external charge/discharge NMOS-FETs accordingly. Also the ML5233 can be cascaded to handle battery packs with more than 10 cells. ■ Features • 4 to 10 cell high-precision overvoltage and undervoltage detection function Voltage monitoring function for individual cells Overvoltage detection threshold 4.25 V, Detection accuracy: ±15 mV (max) Undervoltage detection threshold 2.
