ML5238 - Li-ion secondary battery protection / Analog Front End IC

Datasheet Summary

Description

The ML5238 is analog front end IC for 16 series Lithium Ion secondary battery pack protection system.

Features

  • S.
  • 16 cell highly accurate voltage monitoring function: output cell voltage by half from VMON pin.
  • built-in cell balancing switches for each cell.
  • charge/discharge current monitoring function : Select voltage gain of ISP-ISM and output from IMON pin. Voltage gain selection: x10 / x50.
  • short current detecting function: detecting threshold voltage is selectable, ISP-ISM voltage = 0.1V/0.2V/0.3V/0.4V (typ), the detecting delay time is set by external capac.

📥 Download Datasheet

Datasheet preview – ML5238

Datasheet Details

Part number ML5238
Manufacturer LAPIS
File Size 678.57 KB
Description Li-ion secondary battery protection / Analog Front End IC
Datasheet download datasheet ML5238 Datasheet

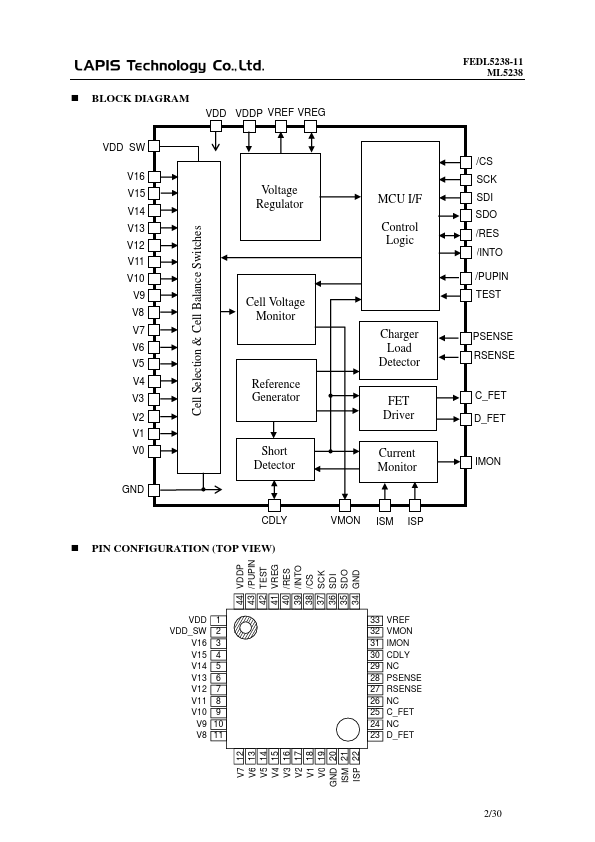

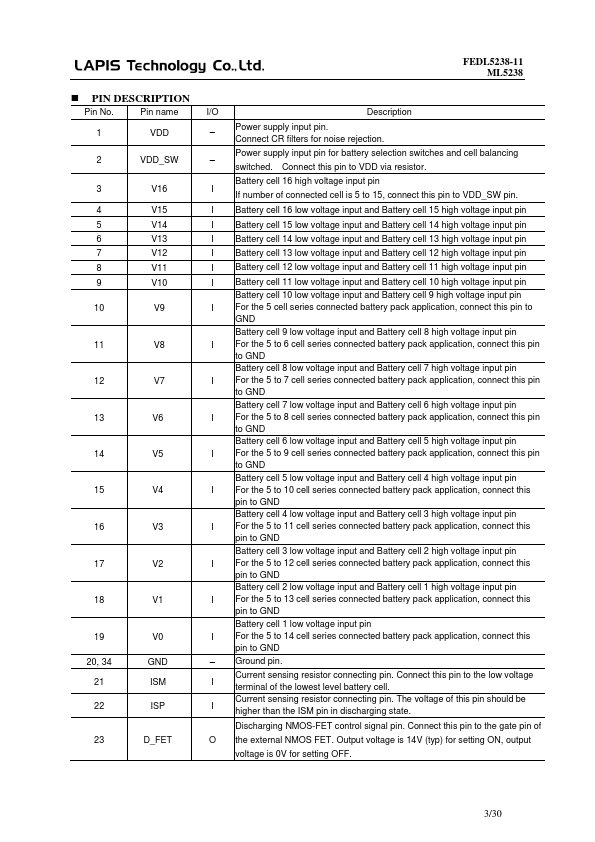

Additional preview pages of the ML5238 datasheet.

📁 Similar Datasheet

  • ML520G54 - LASER DIODES (Mitsubishi)
  • ML524B - MEASURING RECEIVER (Anritsu)
  • ML529P54 - LASER DIODES (Mitsubishi)
  • ML501 - 1.9-2.7 GHz High IP3 Mixer (WJ Communication)
  • ML501P73 - LASER DIODES (Mitsubishi Electric Semiconductor)
  • ML5041-HD-YG-C - HOLE LED (MIC)
  • ML53612 - 64-Channel Full Duplex H.100/H.110 CT Bus System Interface and Time-Slot Interchange (OKI electronic componets)
  • ML53812-2 - H.100/H.110 CT Bus System Interface and Time-Slot Interchange (OKI electronic componets)
  • ML54051 - NAND Flash Memory Controller (OKI electronic)
  • ML54053 - NAND Flash Memory Controller (OKI electronic)
Other Datasheets by LAPIS
  • ML5233 - Cell Li-ion Rechargeable Battery Protection IC
  • ML5236 - Analog Front-End IC
  • ML5206 - Cell Li-ion Rechargeable Battery Protection IC
  • ML5245 - Cell Rechargeable Battery Protection IC

Full PDF Text Transcription

Click to expand full text

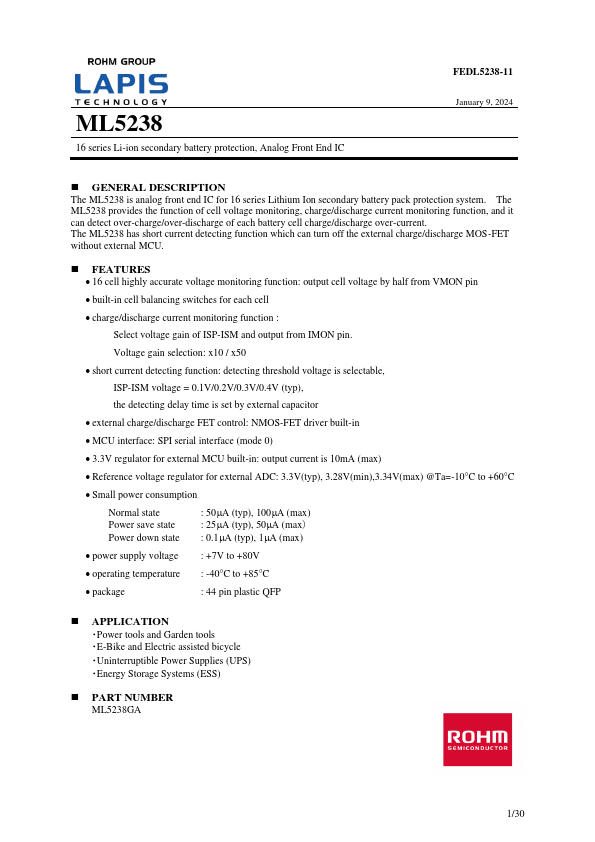

ML5238 16 series Li-ion secondary battery protection, Analog Front End IC FEDL5238-11 January 9, 2024 ◼ GENERAL DESCRIPTION The ML5238 is analog front end IC for 16 series Lithium Ion secondary battery pack protection system. The ML5238 provides the function of cell voltage monitoring, charge/discharge current monitoring function, and it can detect over-charge/over-discharge of each battery cell charge/discharge over-current. The ML5238 has short current detecting function which can turn off the external charge/discharge MOS-FET without external MCU.
