ML5245 - Cell Rechargeable Battery Protection IC

Datasheet Summary

Description

The ML5245 is a protection IC for 5- to13-cell Li-ion rechargeable battery pack.

It detects individual cell overvoltage/undervoltage and pack overcurrent/over-temperature, and then automatically turns on or turns off the external charge/discharge NMOS-FETs accordingly.

Features

  • s.
  • Number of connected cells : 10-cell / 13-cell.
  • Highly accurate overvoltage / undervoltege detection function Overvoltage detection accuracy : ±15mV(25℃) Undervoltage detection accuracy : ±50mV(25℃).
  • Charge / discharge overcurrent detection function Dischrage overcurrent detection accuracy : ±10mV(25℃) Charge overcurrent detection accuracy : ±10mV(25℃).
  • Short current detection function Short current detection accuracy : ±15mV(25℃).
  • Adjusta.

📥 Download Datasheet

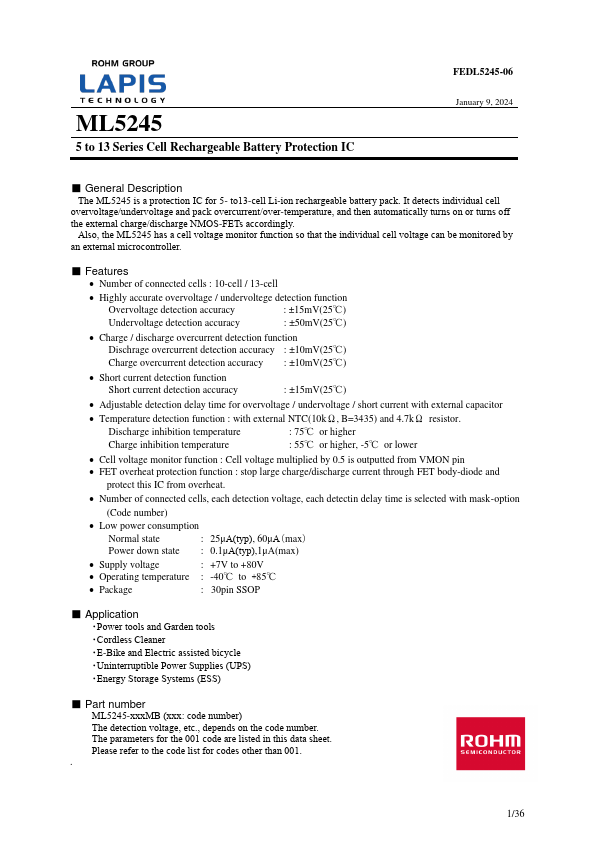

Datasheet preview – ML5245

Datasheet Details

Part number ML5245
Manufacturer LAPIS
File Size 901.35 KB
Description Cell Rechargeable Battery Protection IC
Datasheet download datasheet ML5245 Datasheet

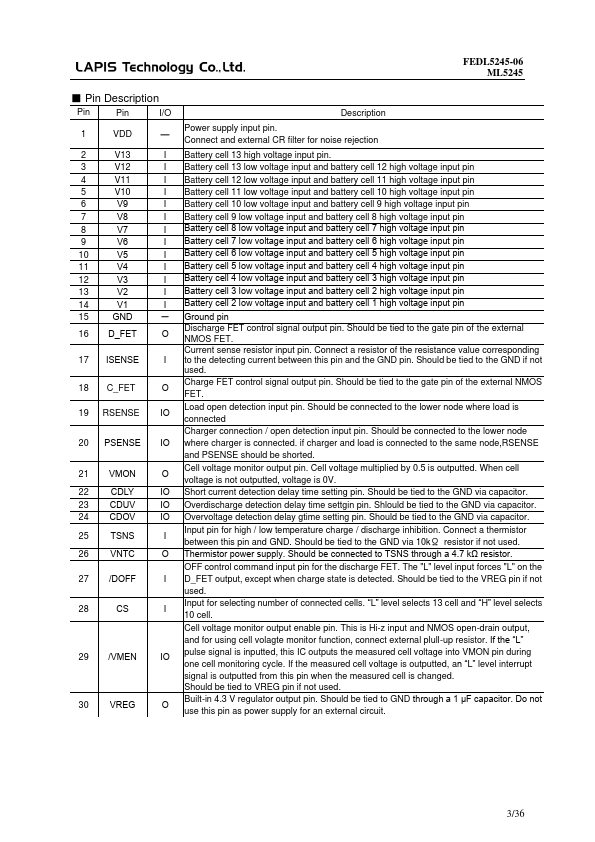

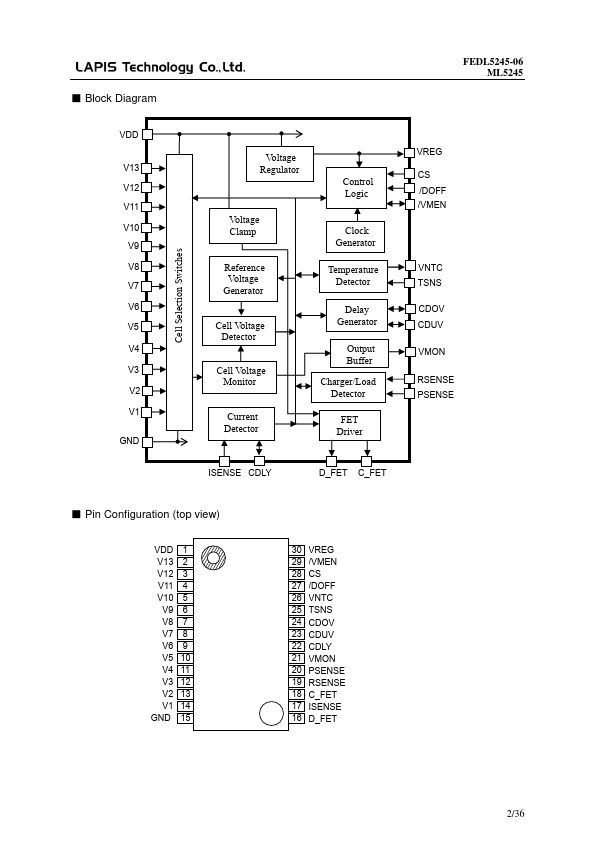

Additional preview pages of the ML5245 datasheet.

📁 Similar Datasheet

  • ML524B - MEASURING RECEIVER (Anritsu)
  • ML520G54 - LASER DIODES (Mitsubishi)
  • ML529P54 - LASER DIODES (Mitsubishi)
  • ML501 - 1.9-2.7 GHz High IP3 Mixer (WJ Communication)
  • ML501P73 - LASER DIODES (Mitsubishi Electric Semiconductor)
  • ML5041-HD-YG-C - HOLE LED (MIC)
  • ML53612 - 64-Channel Full Duplex H.100/H.110 CT Bus System Interface and Time-Slot Interchange (OKI electronic componets)
  • ML53812-2 - H.100/H.110 CT Bus System Interface and Time-Slot Interchange (OKI electronic componets)
  • ML54051 - NAND Flash Memory Controller (OKI electronic)
  • ML54053 - NAND Flash Memory Controller (OKI electronic)
Other Datasheets by LAPIS
  • ML5206 - Cell Li-ion Rechargeable Battery Protection IC
  • ML5233 - Cell Li-ion Rechargeable Battery Protection IC
  • ML5236 - Analog Front-End IC
  • ML5238 - Li-ion secondary battery protection / Analog Front End IC

Full PDF Text Transcription

Click to expand full text
ML5245 5 to 13 Series Cell Rechargeable Battery Protection IC FEDL5245-06 January 9, 2024 ■ General Description The ML5245 is a protection IC for 5- to13-cell Li-ion rechargeable battery pack. It detects individual cell overvoltage/undervoltage and pack overcurrent/over-temperature, and then automatically turns on or turns off the external charge/discharge NMOS-FETs accordingly. Also, the ML5245 has a cell voltage monitor function so that the individual cell voltage can be monitored by an external microcontroller.
