LBAS16LT1G - Switching Diode

Datasheet Summary

Features

  • We declare that the material of product compliance with RoHS requirements and Halogen Free.
  • S- prefix for automotive and other.

📥 Download Datasheet

Datasheet preview – LBAS16LT1G

Datasheet Details

Part number LBAS16LT1G
Manufacturer LRC
File Size 181.65 KB
Description Switching Diode
Datasheet download datasheet LBAS16LT1G Datasheet
Additional preview pages of the LBAS16LT1G datasheet.

📁 Similar Datasheet

  • LBAS16LT1 - Switching Diode (Leshan Radio Company)
  • LBAS16HT1 - Switching Diode (Leshan Radio Company)
  • LBAS16TT1G - Silicon Switching Diode (Leshan Radio Company)
  • LBAS16TT3G - Silicon Switching Diode (Leshan Radio Company)
  • LBAS16TW1T1G - SURFACE MOUNT FAST SWITCHING DIODE (Leshan Radio Company)
  • LBAS16WT1 - Switching Diode (Leshan Radio Company)
  • LBAS16WT1G - Switching Diode (Leshan Radio Company)
  • LBAS116LT1G - Surface Mount Low Leakge Diode (Leshan Radio Company)
  • LBAS170HT1G - SCHOTTKY BARRIER DIODE (Leshan Radio Company)
  • LBAS20HT1 - Switching Diode (Leshan Radio Company)
Other Datasheets by LRC

Full PDF Text Transcription

Click to expand full text

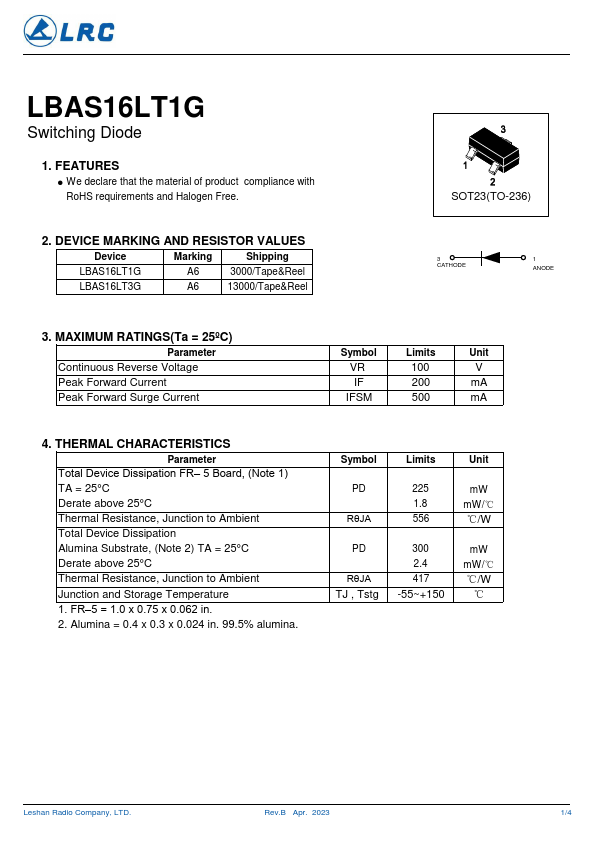

LBAS16LT1G S-LBAS16LT1G Switching Diode 1. FEATURES ● We declare that the material of product compliance with RoHS requirements and Halogen Free. ● S- prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable. 2. DEVICE MARKING AND RESISTOR VALUES Device Marking Shipping LBAS16LT1G A6 3000/Tape&Reel LBAS16LT3G A6 10000/Tape&Reel SOT23(TO-236) 3 CATHODE 1 ANODE 3. MAXIMUM RATINGS(Ta = 25ºC) Parameter Continuous Reverse Voltage Peak Forward Current Peak Forward Surge Current Symbol VR IF IFSM Limits 75 200 500 Unit V mA mA 4.
