• Part: MX25L25639F
  • Description: FLASH MEMORY
  • Manufacturer: Macronix
  • Size: 0.96 MB
Download MX25L25639F Datasheet PDF
Macronix
MX25L25639F
MX25L25639F is FLASH MEMORY manufactured by Macronix.

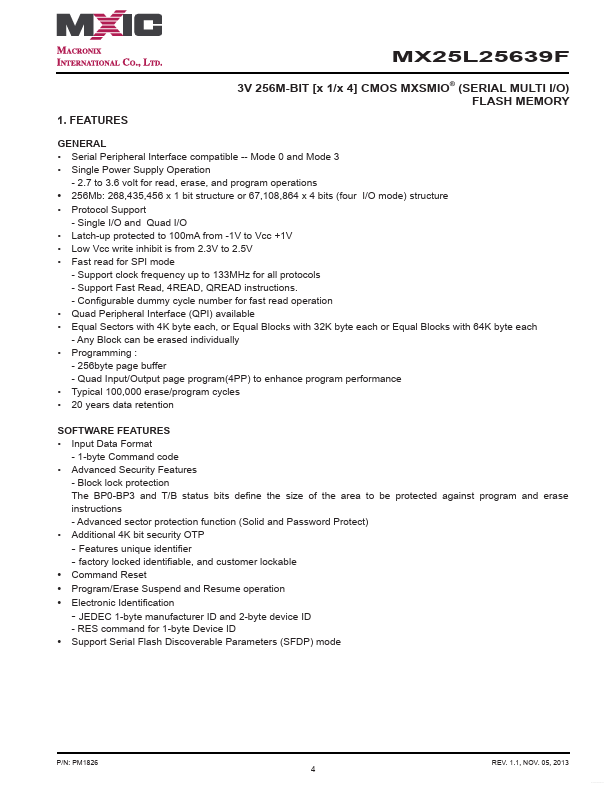

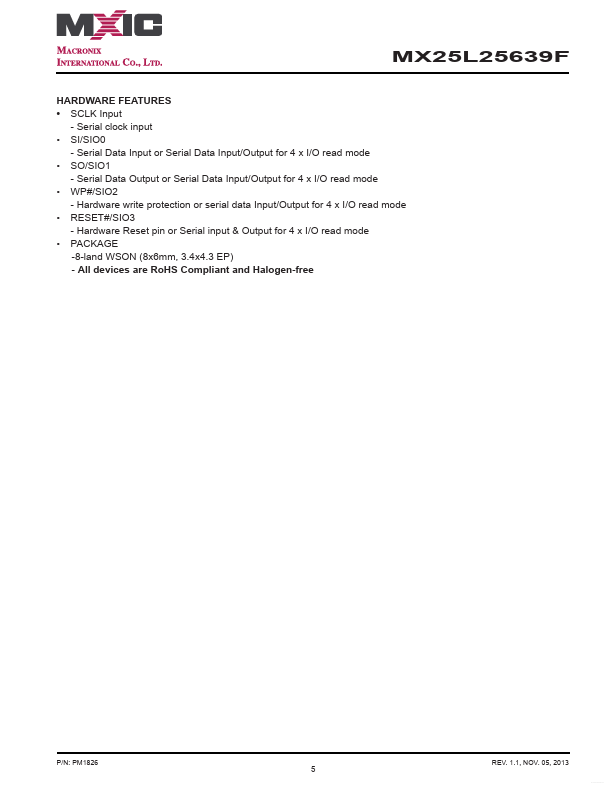

FEATURES 3V 256M-BIT [x 1/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY GENERAL - Serial Peripheral Interface patible -- Mode 0 and Mode 3 - Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations - 256Mb: 268,435,456 x 1 bit structure or 67,108,864 x 4 bits (four I/O mode) structure - Protocol Support - Single I/O and Quad I/O - Latch-up protected to 100m A from -1V to Vcc +1V - Low Vcc write inhibit is from 2.3V to 2.5V - Fast read for SPI mode - Support clock frequency up to 133MHz for all protocols - Support Fast Read, 4READ, QREAD instructions. - Configurable dummy cycle number for fast read operation - Quad Peripheral Interface (QPI) available - Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each - Any Block can be erased individually - Programming : - 256byte page buffer - Quad Input/Output page program(4PP) to enhance program performance - Typical 100,000 erase/program cycles - 20 years data retention SOFTWARE FEATURES - Input Data Format - 1-byte mand code - Advanced Security Features - Block lock protection The BP0-BP3 and T/B status bits define the size of the area to be protected against program and erase instructions - Advanced sector protection function (Solid and Password Protect) - Additional 4K bit security OTP - Features unique identifier - factory locked identifiable, and customer lockable - mand Reset - Program/Erase Suspend and Resume operation - Electronic Identification - JEDEC 1-byte manufacturer ID and 2-byte device ID - RES mand for 1-byte Device ID - Support Serial Flash Discoverable Parameters (SFDP) mode P/N: PM1826 REV. 1.1, NOV. 05, 2013 4...
