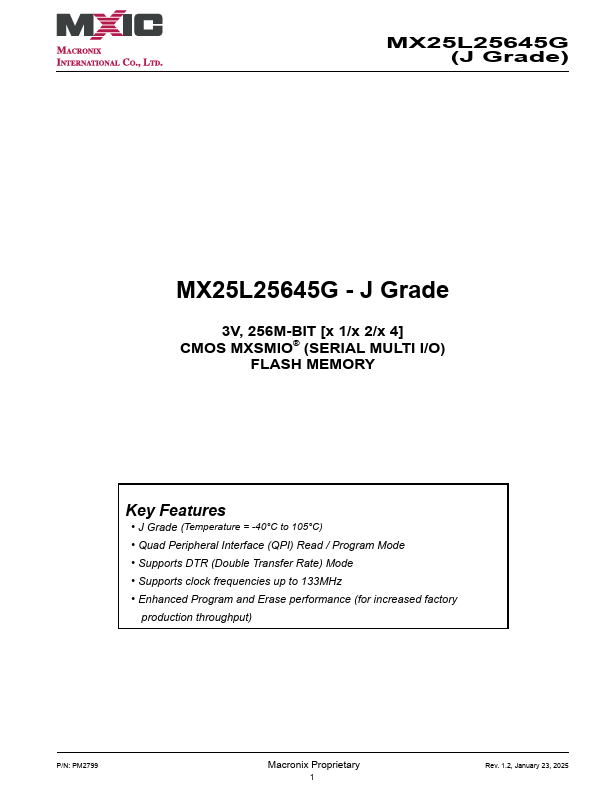

MX25L25645G-J Datasheet | Macronix

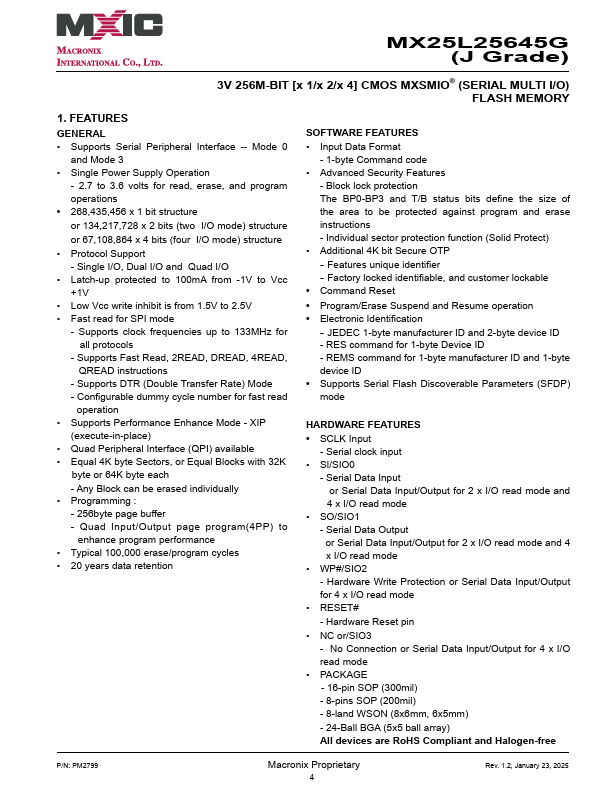

Features - J Grade (Temperature = -40°C to 105°C) - Quad Peripheral Interface (QPI) Read / Program Mode - Supports DTR (Double Transfer Rate) Mode - Supports clock frequencies up to 133MHz - Enhanced Program and Erase performance (for increased factory production throughput) P/N: PM2799 Macronix Proprietary Rev. 1.2, January 23, 2025 MX25L25645G (J Grade) 3V 256M-BIT [x 1/x 2/x 4] CMOS MXSMIO® (SERIAL MULTI I/O) FLASH MEMORY 1. FEATURES GENERAL - Supports Serial Peripheral Interface -- Mode 0 and Mode 3 - Single Power Supply Operation - 2.7 to 3.6 volts for read, erase, and program operations - 268,435,456 x 1 bit structure or 134,217,728 x 2 bits (two I/O mode) structure or 67,108,864 x 4 bits (four I/O mode) structure - Protocol Support - Single I/O, Dual I/O and Quad I/O - Latch-up protected to 100m A from -1V to Vcc +1V - Low Vcc write inhibit is from 1.5V to 2.5V - Fast read for SPI mode - Supports clock frequencies up to 133MHz for all protocols - Supports Fast Read, 2READ, DREAD, 4READ, QREAD instructions - Supports DTR (Double Transfer Rate) Mode - Configurable dummy cycle number for fast read operation - Supports Performance Enhance Mode - XIP (execute-in-place) - Quad Peripheral Interface (QPI) available - Equal 4K byte Sectors, or Equal Blocks with 32K byte or 64K byte each - Any Block can be erased individually - Programming : - 256byte page buffer - Quad Input/Output page program(4PP) to enhance program performance - Typical 100,000 erase/program cycles - 20 years data retention SOFTWARE FEATURES - Input Data...
