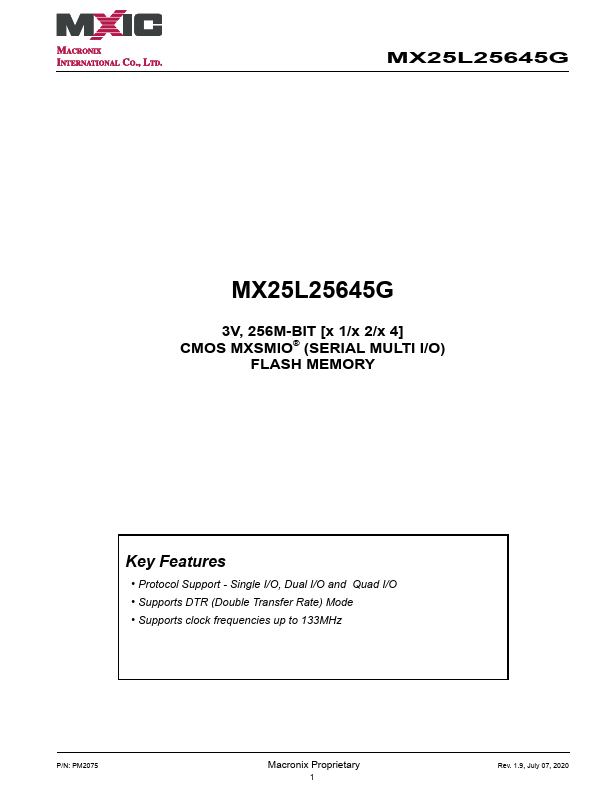

MX25L25645G - 256M-BIT CMOS MXSMIO FLASH MEMORY

Product Overview

MACRONIX

Datasheet Details

Part number	MX25L25645G
Manufacturer	MACRONIX
File Size	1.65 MB
Description	256M-BIT CMOS MXSMIO FLASH MEMORY
Datasheet	MX25L25645G Datasheet
Additional preview pages of the MX25L25645G datasheet.

Product details

Description

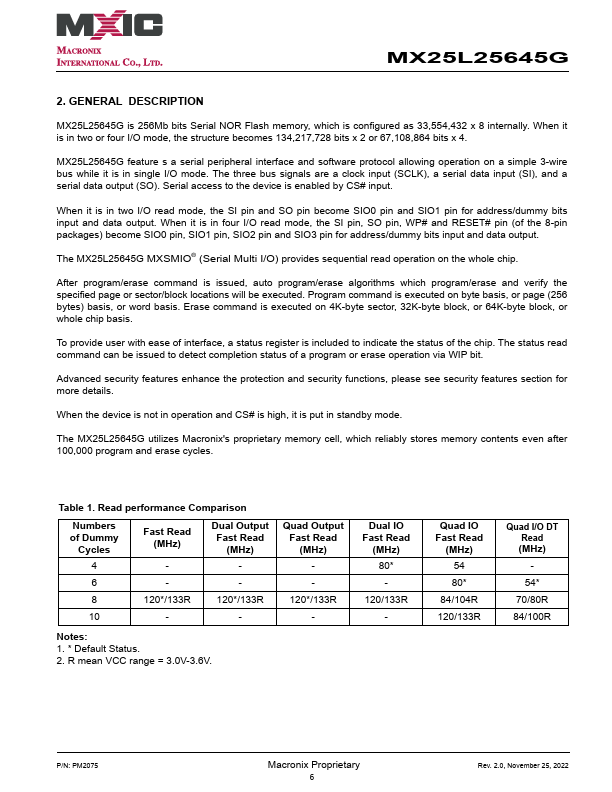

6 Table 1. Read performance Comparison6 3. PIN CONFIGURATIONS 7 4. PIN DESCRIPTION 7 5. BLOCK DIAGRAM 8 6. DATA PROTECTION 9 Table 2. Protected Area Sizes10 Table 3. 4K-bit Secured OTP Definition 11 7. Memory Organization 12 Table 4. Memory Organization12 8. DEVICE OPERATION 13 8-1. 256Mb Address Protocol 16 8-2. Quad Peripheral Interface (QPI) Read Mode 17 9. COMMAND DESCRIPTION 18 Table 5. Command Set18 9-1. Write Enable (WREN) 23 9-2. Write Disable (WRDI) 24 9-3. Factory Mode Enable (FMEN) 2

Features

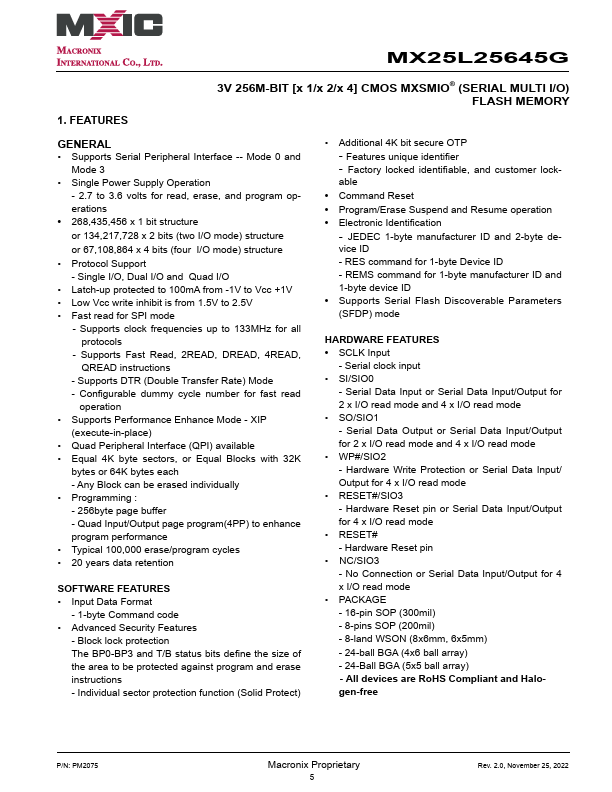

Protocol Support - Single I/O, Dual I/O and Quad I/O.
Supports DTR (Double Transfer Rate) Mode.
Supports clock frequencies up to 133MHz P/N: PM2075 Macronix Proprietary 1 Rev. 1.9, July 07, 2020 MX25L25645G Contents 1.
