2SC3052 - NPN General Purpose Amplifier

Key Features

  • Low Collector to Emitter Saturation Voltage.
  • Excellent Linearity of DC Forward Current Gain.
  • Halogen Free. “Green” Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified.
  • Operating Junction Temperature Range: -55℃ to +125℃.
  • Storage Temperatur.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC3052 NPN Small Signal Surface Mount Transistor GME
2SC3052 SILICON NPN EPITAXIAL TYPE TRANSISTOR Isahaya Electronics
2SC3052 TRANSISTOR Jiangsu Changjiang
2SC3052 NPN Transistor Kexin
2SC3052 NPN Silicon Plastic-Encapsulate Transistor SeCoS

Other Datasheets by Micro Commercial Components

Part Number Description
2SC3265 NPN General Purpose Amplifier
2SC3265-O NPN Amplifier
2SC3265-Y NPN Amplifier
2SC3973B NPN Silicon Power Transistors
2SC1623 NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

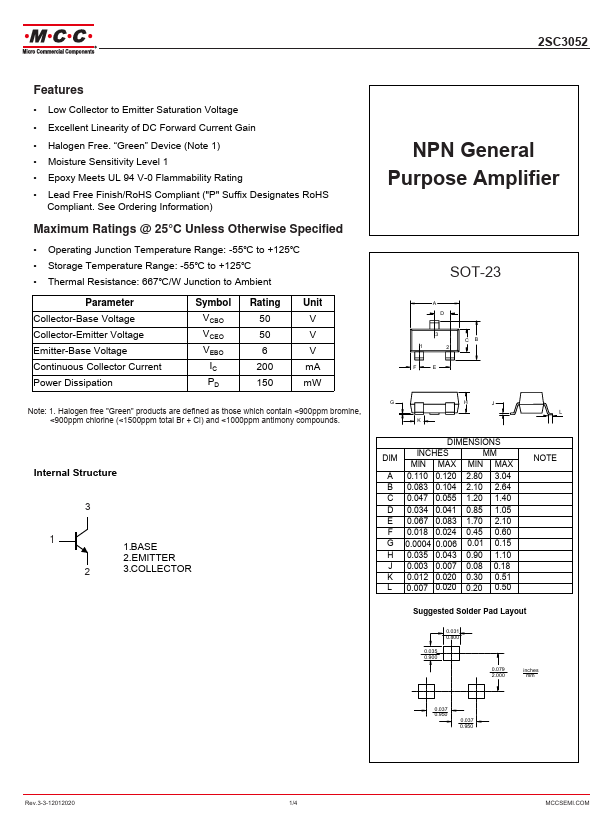

2SC3052 Features • Low Collector to Emitter Saturation Voltage • Excellent Linearity of DC Forward Current Gain • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C Unless Otherwise Specified • Operating Junction Temperature Range: -55℃ to +125℃ • Storage Temperature Range: -55℃ to +125℃ • Thermal Resistance: 667℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating 50 50 6 200 150 Unit V V V mA mW Note: 1.
