2SC4215 - NPN Silicon Epitaxial Transistors

Key Features

  • Small Reverse Transfer Capacitance.
  • Halogen Free. “Green” Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) NPN Silicon Epitaxial Transistors Maximum Ratings @ 25°C Unless Otherwise Specified.
  • Operating Junction Temperature Range: -55℃ to +150℃.
  • Storage Temperature Range: -55℃ to +150℃.

📥 Download Datasheet

📁 Similar Datasheet

Brand Logo Part Number Description Manufacturer
GME Logo 2SC4215 NPN Silicon Transistor GME
Toshiba Semiconductor Logo 2SC4215 Silicon NPN Transistor Toshiba Semiconductor
MLSM Logo 2SC4215 NPN Transistor MLSM
Inchange Semiconductor Logo 2SC4215 Silicon NPN Transistor Inchange Semiconductor
Kexin Logo 2SC4215 Silicon NPN Transistor Kexin

More Datasheets from Micro Commercial Components

Part Number Description
2SC4215-O NPN Silicon Transistors
2SC4215-R NPN Silicon Transistors
2SC4215-Y NPN Silicon Transistors
2SC4081-A NPN Transistor
2SC4081-B NPN Transistor
2SC4081-C NPN Transistor
2SC4097-P NPN Silicon Epitaxial Transistors
2SC4097-Q NPN Silicon Epitaxial Transistors
2SC4097-R NPN Silicon Epitaxial Transistors
2SC4116-BL NPN Transistor

Full PDF Text Transcription for 2SC4215 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for 2SC4215. For precise diagrams, tables, and layout, please refer to the original PDF.

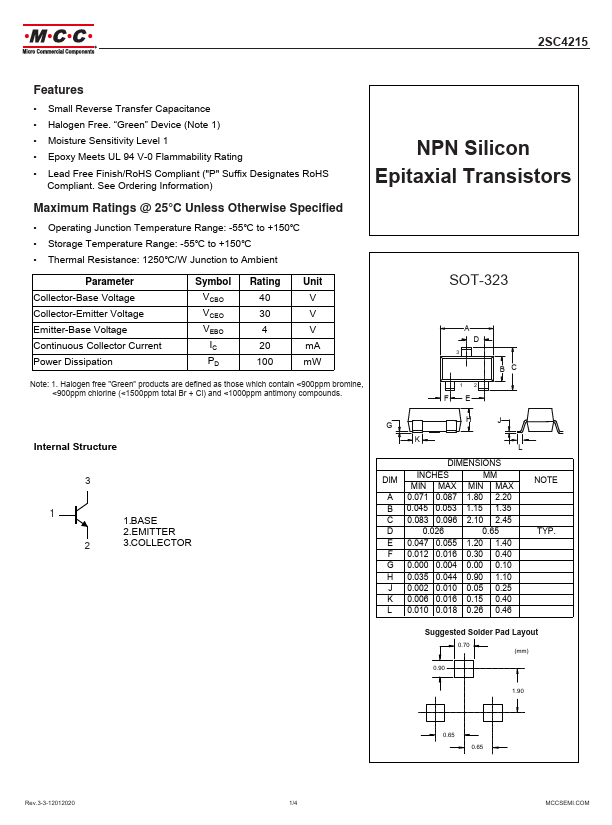

2SC4215 Features • Small Reverse Transfer Capacitance • Halogen Free. “Green” Device (Note 1) • Mois...

View more extracted text
ture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) NPN Silicon Epitaxial Transistors Maximum Ratings @ 25°C Unless Otherwise Specified • Operating Junction Temperature Range: -55℃ to +150℃ • Storage Temperature Range: -55℃ to +150℃ • Thermal Resistance: 1250℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating 40 30 4 20 100 Unit V V V mA mW Note: 1.
