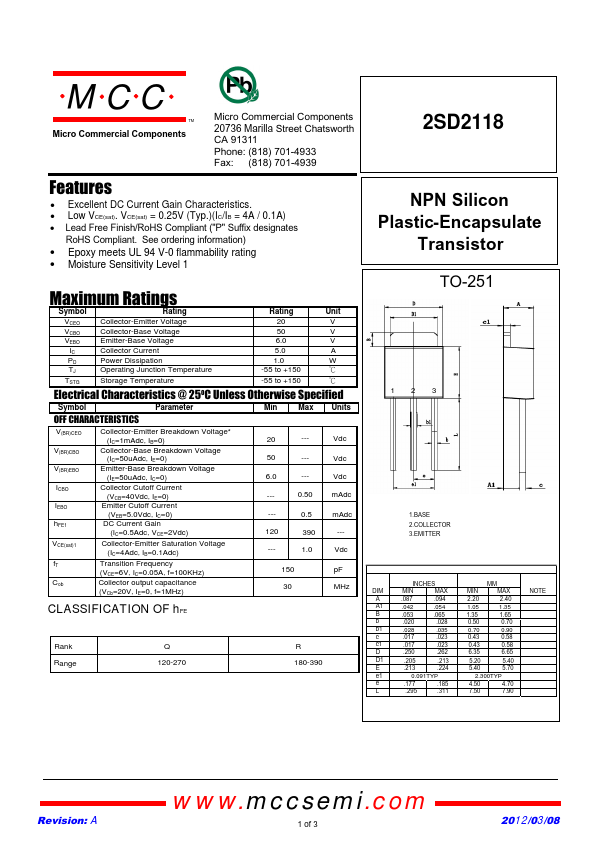

2SD2118 Datasheet NPN Silicon Plastic-Encapsulate Transistor

Manufacturer: Micro Commercial Components

📥 Download Datasheet

Overview

MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !

Key Features

  • Excellent DC Current Gain Characteristics.
  • Low VCE(sat). VCE(sat) = 0.25V (Typ. )(IC/IB = 4A / 0.1A).
  • Lead Free Finish/RoHS Compliant ("P" Suffix designates NPN Silicon Plastic-Encapsulate RoHS Compliant. See ordering information).
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisture Sensitivity Level 1 Transistor Maximum Ratings TO-251  Symbol Rating Rating Unit  VCEO Collector-Emitter Voltage 20 V  VCBO Collector-Base Voltage 5.
