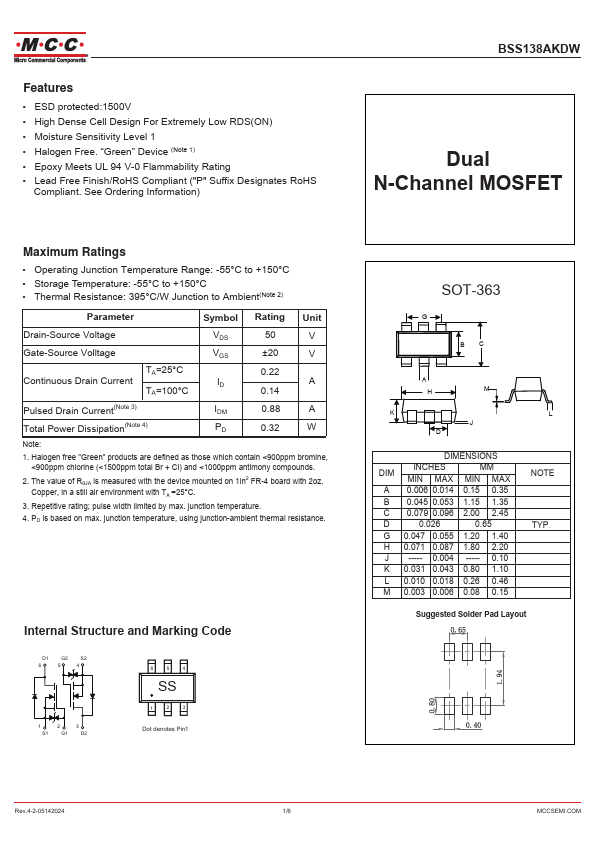

Features
• ESD protected:1500V • High Dense Cell Design For Extremely Low RDS(ON) • Moisture Sensitivity Level 1 • Halogen Free. “Green” Device (Note 1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS
Compliant. See Ordering Information)
%66$.':
'XDO 1&KDQQHO026)(7
Maximum Ratings
• Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature: -55°C to +150°C • Thermal Resistance: 395°C/W Junction to Ambient(Note 2)
Parameter
Symbol Rating Unit
Drain-Source Voltage
VDS
50
V
Gate-Source Volltage
VGS
±20
V
TA=25°C
Continuous Drain Current
ID
TA=100°C
0.22 A
0.14
Pulsed Drain Current(Note 3)
IDM
0.88
A
Total Power Dissipation(Note 4)
PD
0.32
W
Note:
1.
BSS138AKDW Datasheet
