Micro Commercial Components KTC3875
Epitaxial Planar NPN Transistors
| Part No. | KTC3875 |
|---|---|
| Datasheet | KTC3875 Download |
| Manufacturer |  Micro Commercial Components |
| Description | Epitaxial Planar NPN Transistors |
| Buy | Stock & Price |

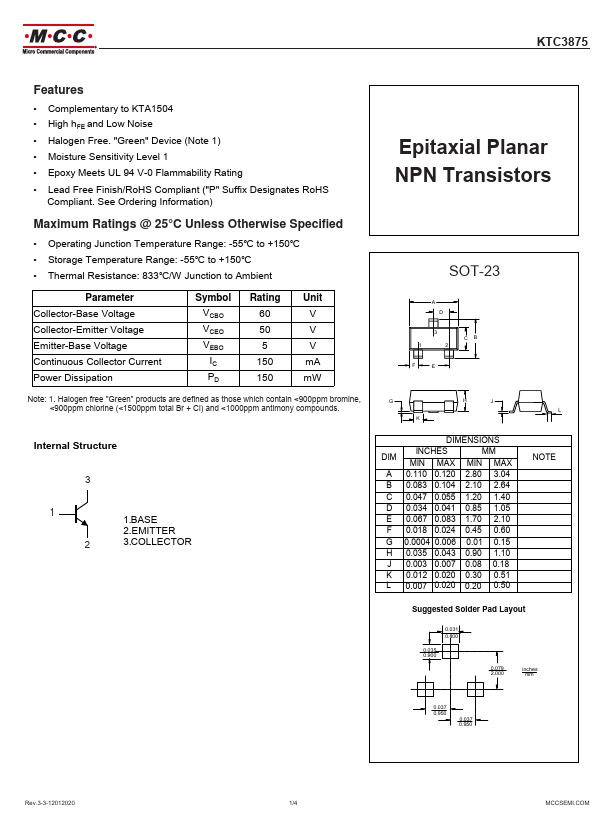

FEATURES
● Complementary to KTA1504● High hFE and Low Noise
● Halogen Free. "Green" Device (Note 1)
● Moisture Sensitivity Level 1
● Epoxy Meets UL 94 V-0 Flammability Rating
● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)
MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified● Operating Junction Temperature Range: -55℃ to +150℃
● Storage Temperature Range: -55℃ to +150℃
● Thermal Resistance: 833℃/W Junction to Ambient Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating 60 50 5 150 150 Unit V V V mA mW Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. Internal Structure 3 1 2 1.BASE 2.EMITTER 3.COLLECTOR Epitaxial Planar NPN Transistors SOT-23 A D 3 1 2 CB F E G H J L K DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.11...
