KTC3875 - NPN Silicon Epitaxial Planar Transistor

Galaxy Microelectronics

Key Features

z Complementary To KTA1504. z Excellent HFE Linearity. z Low noise. Pb Lead-free KTC3875.

KTC3875 npn silicon epitaxial planar transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	KTC3875
Manufacturer	Galaxy Microelectronics
File Size	177.51 KB
Description	NPN Silicon Epitaxial Planar Transistor
Datasheet	KTC3875 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
KTC3875	Plastic-Encapsulate Transistors NPN Silicon	Weitron
KTC3875	TRANSISTOR	Jin Yu Semiconductor
KTC3875	NPN Transistor	SeCoS
KTC3875	Silicon NPN transistor	BLUE ROCKET ELECTRONICS
KTC3875	NPN Transistor	HOTTECH

Other Datasheets by Galaxy Microelectronics

Part Number	Description
KTC3876	NPN Transistor
KTC3879	NPN Silicon Epitaxial Planar Transistor
KTC3880S	NPN Silicon Epitaxial Planar Transistor
KTC3265	NPN Silicon Epitaxial Planar Transistor
KTC4076	NPN Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

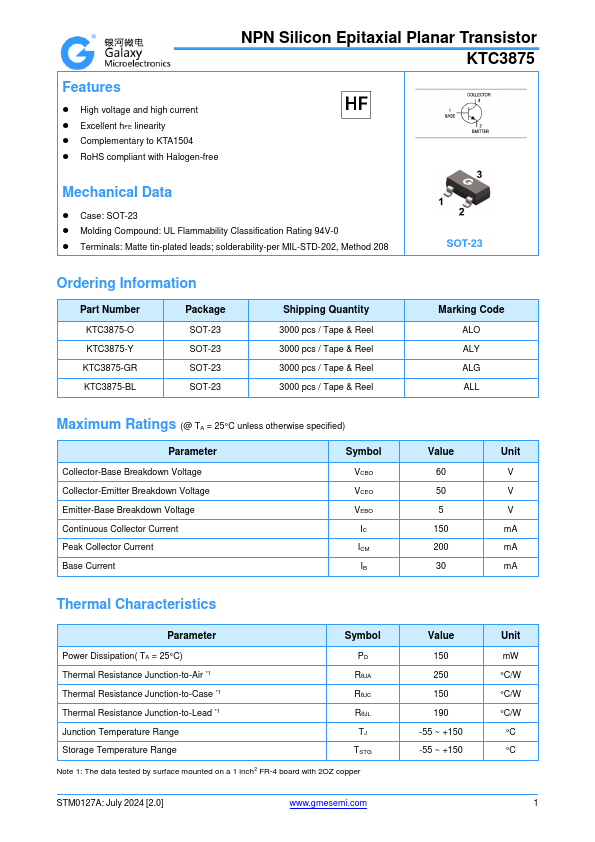

Production specification NPN Silicon Epitaxial Planar Transistor FEATURES z Complementary To KTA1504. z Excellent HFE Linearity. z Low noise. Pb Lead-free KTC3875 APPLICATIONS z General purpose application, switching application. ORDERING INFORMATION Type No. Marking KTC3875 ALO/ALY/ALG/ALL SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 60 VCEO Collector-Emitter Voltage 50 VEBO Emitter-Base Voltage 5 IC Collector Current -Continuous 150 IB Base Current 30 PC Collector Power Dissipation 150 Tj,Tstg Junction and Storage Temperature -55 to +150 Units V V V mA mA mW ℃ C056 Rev.A www.gmicroelec.
