KTC3875 Datasheet | MLS Microelectronics

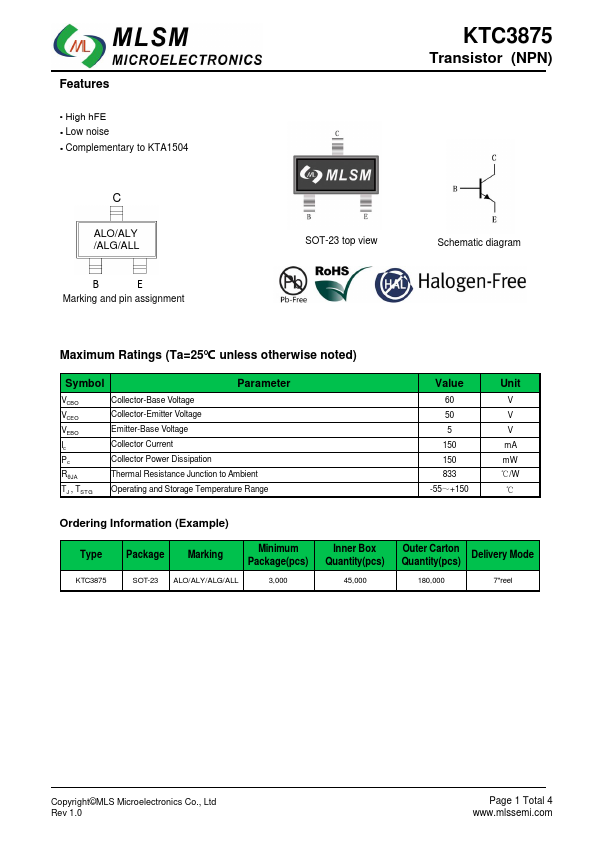

Features - High hFE - Low noise - plementary to KTA1504 ALO/ALY /ALG/ALL Marking and pin assignment Transistor (NPN) SOT-23 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO Ic Pc RθJA TJ , TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Value 60 50 5 150 150 833 -55～+150 Unit V V V mA mW ℃/W ℃ Ordering Information (Example) Type Package Marking Minimum Package(pcs) SOT-23 ALO/ALY/ALG/ALL 3,000 Inner Box Quantity(pcs) 45,000 Outer...
