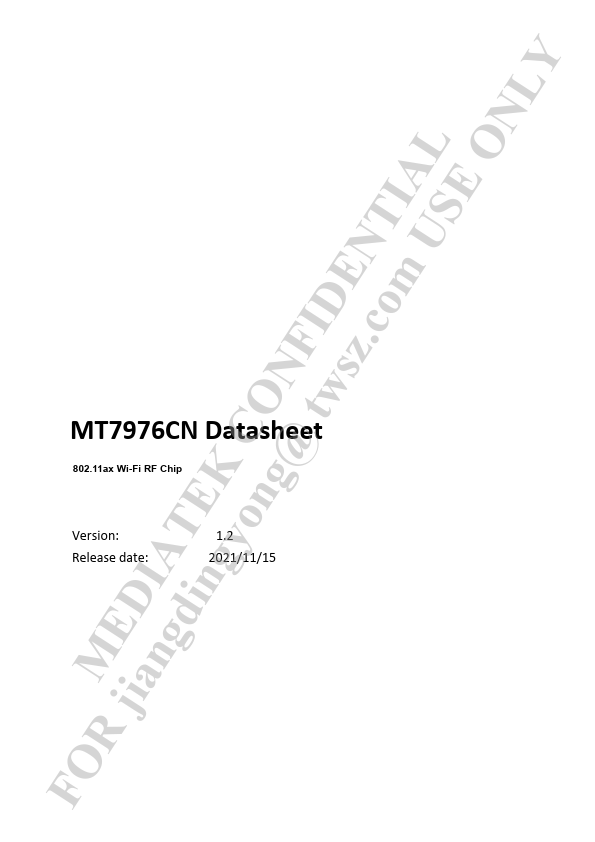

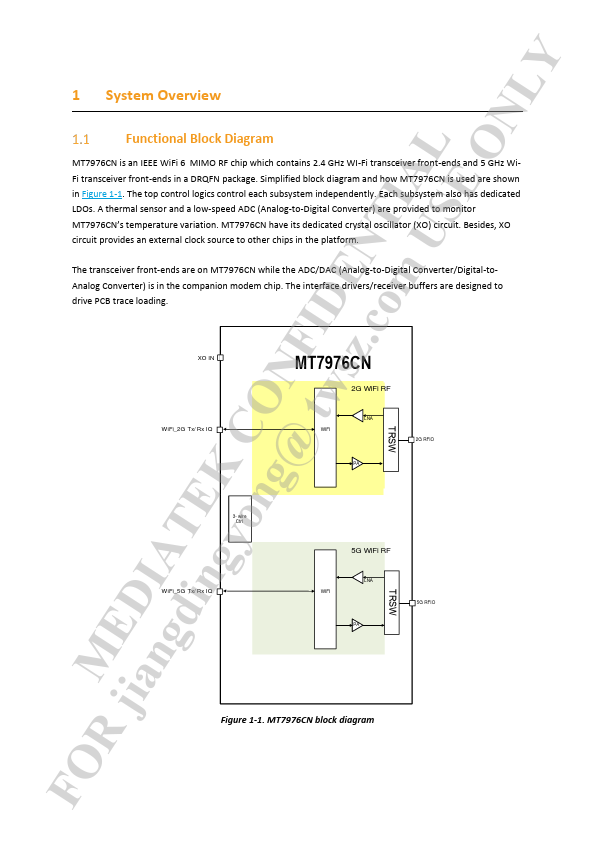

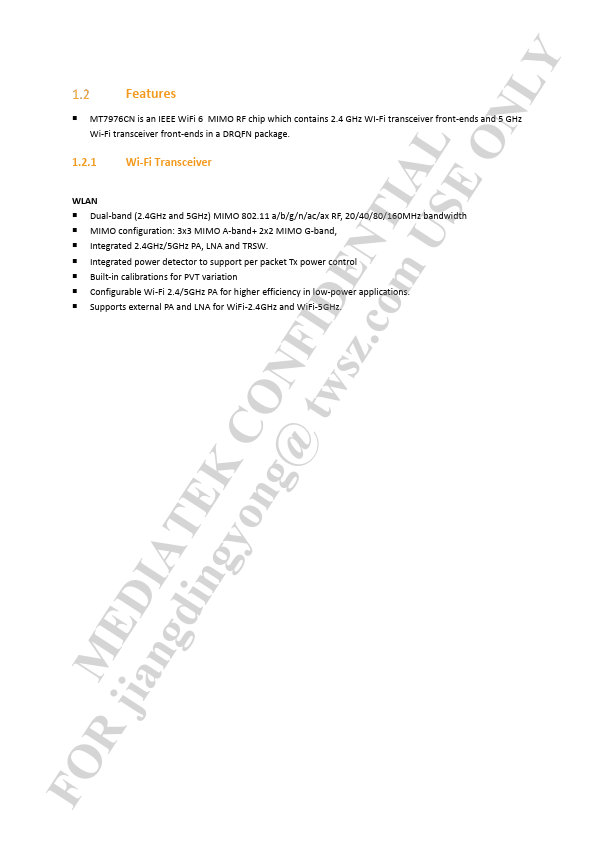

FOR jianMgEdiDIngAyToEngK@CtOwsNz.FIcoDmENUTSIEALONLY MT7976CN Datasheet 802.11ax Wi-Fi RF Chip Version: Release date: 1.2 2021/11/15 FOR jianMgEdiDIngAyToEngK@CtOwsNz.FIcoDmENUTSIEALONLY 1 System Overview Functional Block Diagram MT7976CN is an IEEE WiFi 6 MIMO RF chip which contains 2.4 GHz WI-Fi transceiver front-ends and 5 GHz WiFi transceiver front-ends in a DRQFN package. Simplified block diagram and how MT7976CN is used are shown in Figure 1-1. The top control logics control each subsystem independently. Each subsystem also has dedicated LDOs. A thermal sensor and a low-speed ADC (Analog-to-Digital Converter) are provided to monitor MT7976CN’s temperature variation. MT7976CN...
