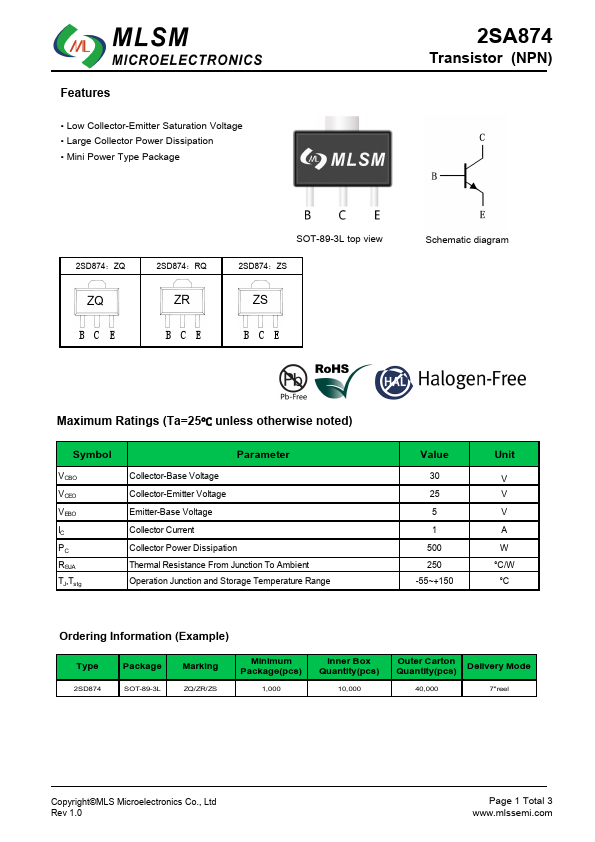

Datasheet Summary
Features
- Low Collector-Emitter Saturation Voltage
- Large Collector Power Dissipation
- Mini Power Type Package
Transistor (NPN)
X:Rank
2SD874：ZQ
ZQ BCE
2SD874：RQ
ZR BCE
SOT-89-3L top view
2SD874：ZS
ZS BCE
Schematic diagram

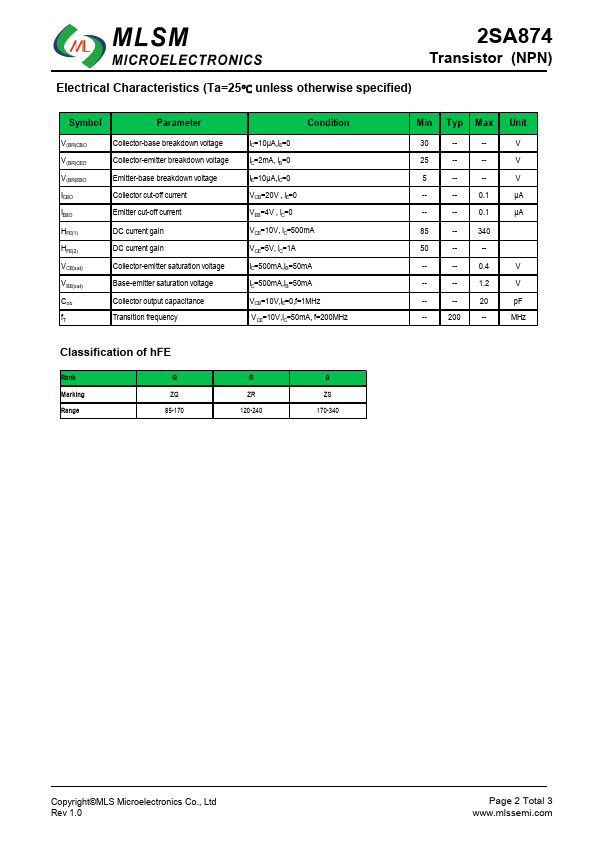

Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
30 25 5 1 500 250 -55~+150
Unit
V V V A W °C/W °C
Ordering Information (Example)
Type
2SD874

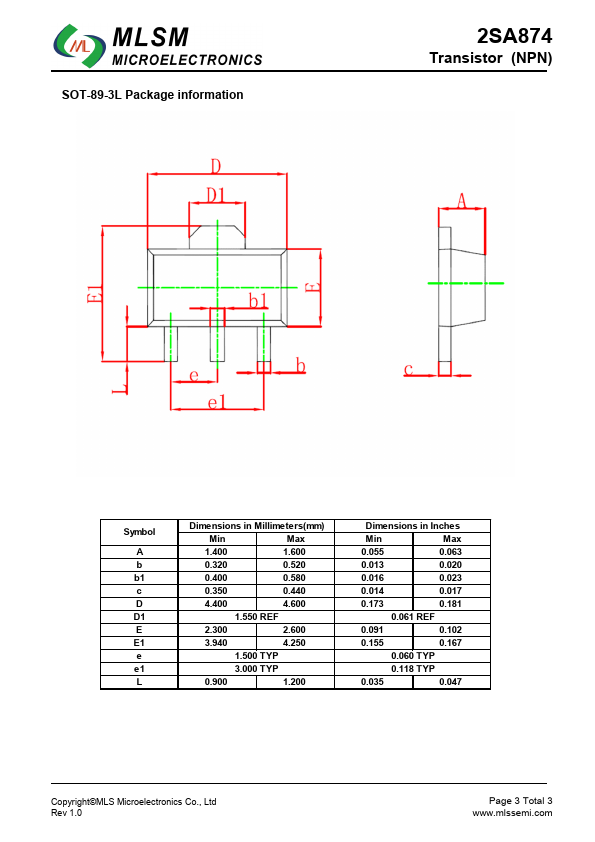

Package
SOT-89-3L
Marking
ZQ/ZR/ZS...
