MLSM 2SC4003
NPN Transistors
| Part No. | 2SC4003 |
|---|---|
| Datasheet | 2SC4003 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistors |
| Buy | Stock & Price |

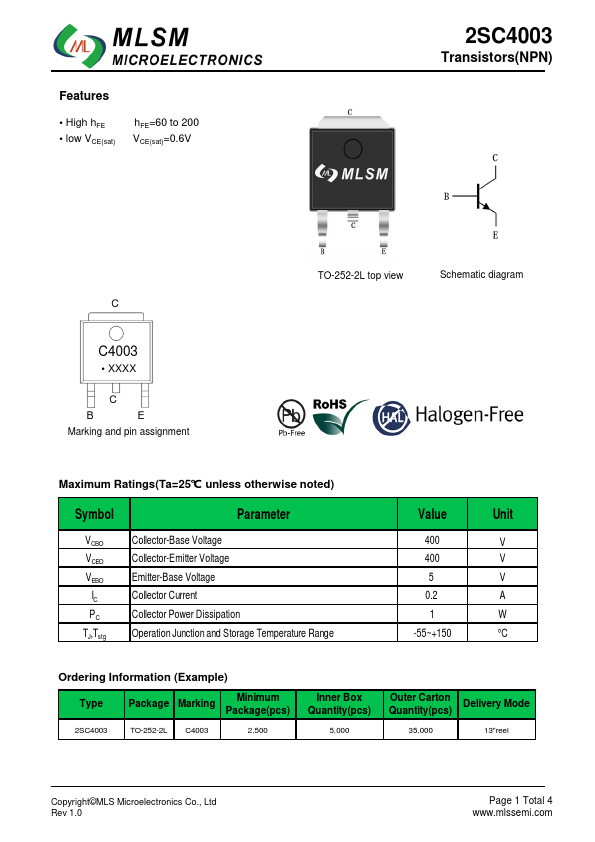

FEATURES
● High hFE● low VCE(sat) hFE=60 to 200 VCE(sat)=0.6V 2SC4003 Transistors(NPN) C C4003
● XXXX C B E Marking and pin assignment TO-252-2L top view Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO IC PC TJ,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit 400 V 400 V 5 V 0.2 A 1 W -55~+150 °C Ordering Information (Example) Type Package Marking Minimum Package(pcs) 2SC4003 TO-252-2L C4003 2,500 Inner Box Quantity(pcs) 5,000 Outer Carton Quantity(pcs) Delivery Mode 35,000 13"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4ELECTRICAL CHARACTERISTICS

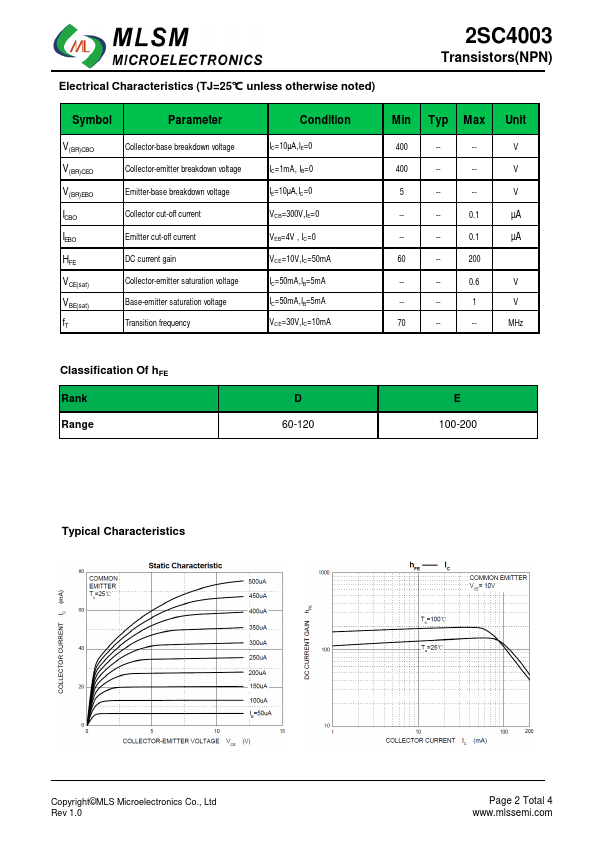

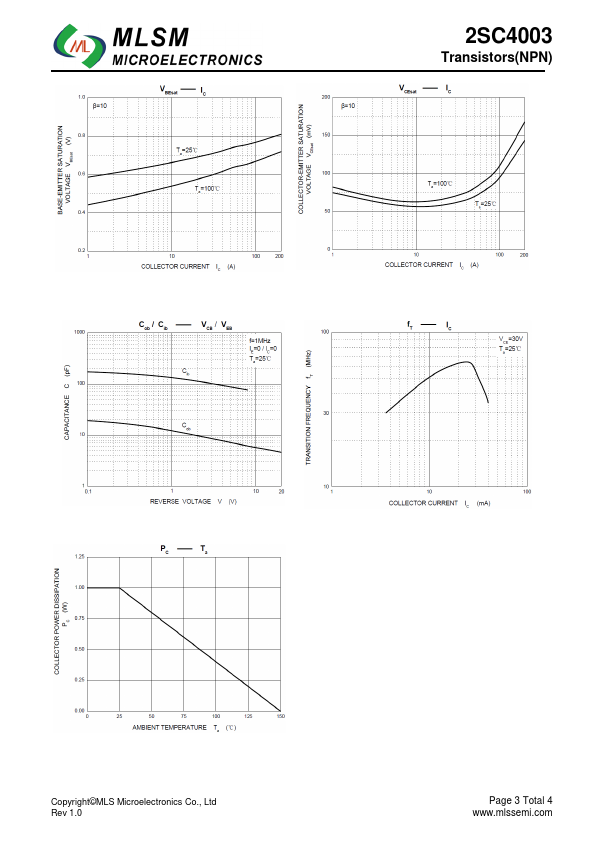

(TJ=25℃ unless otherwise noted) 2SC4003 Transistors(NPN) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE VCE(sat) VBE(sat) fT Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Colle...
