2SC4115
2SC4115 is NPN Transistor manufactured by MLS Microelectronics.

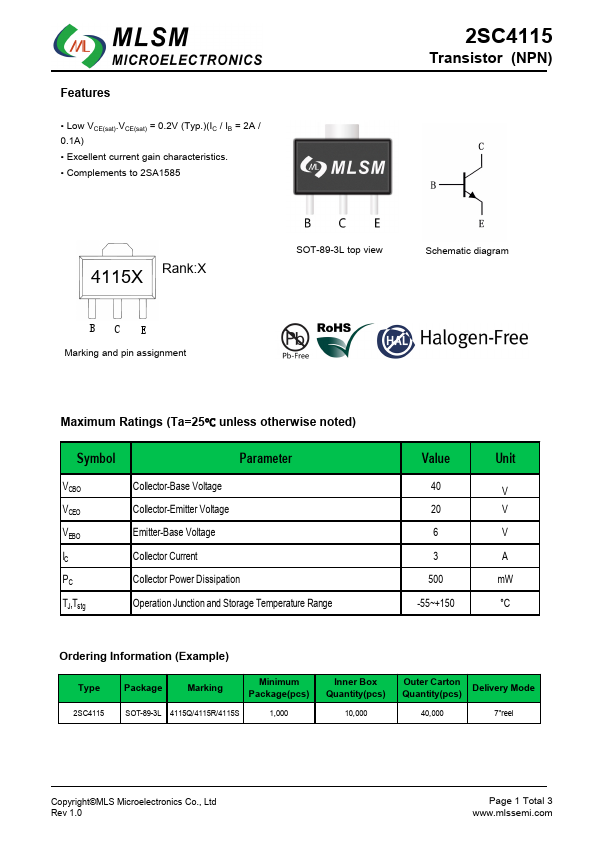

Features
- Low VCE(sat).VCE(sat) = 0.2V (Typ.)(IC / IB = 2A / 0.1A)
- Excellent current gain characteristics.
- plements to 2SA1585
Transistor (NPN)
X:Rank
4115X Rank:X
BC E
Marking and pin assignment
SOT-89-3L top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO VCEO VEBO IC PC TJ,Tstg
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range
Value
Unit
500 m W
-55~+150
°C
Ordering Information (Example)
Type
Package
Marking
Minimum Package(pcs)
SOT-89-3L 4115Q/4115R/4115S
1,000
Inner Box Quantity(pcs)
10,000
Outer Carton Quantity(pcs)
Delivery Mode
40,000
7"reel
Copyright©MLS Microelectronics Co., Ltd Rev 1.0
Page 1 Total 3 .mlssemi.
Transistor (NPN)

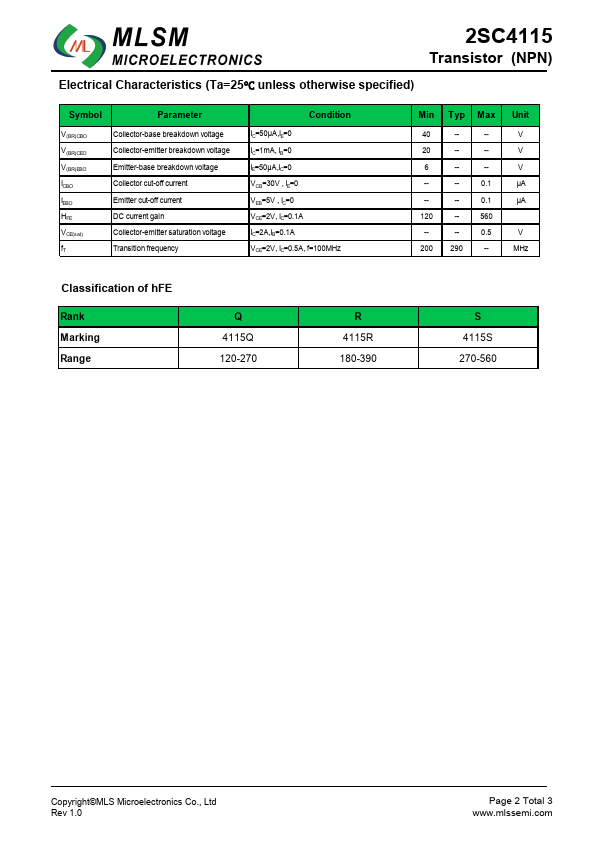

Electrical Characteristics (Ta=25℃ unless otherwise specified)
Symbol...
