Full PDF Text Transcription for 2SC4180 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SC4180. For precise diagrams, and layout, please refer to the original PDF.

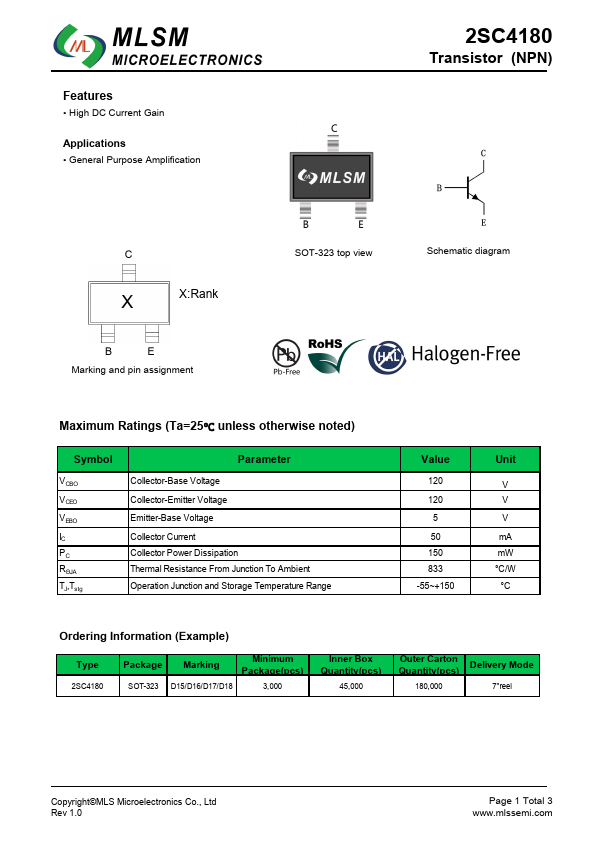

Features • High DC Current Gain Applications • General Purpose Amplification 2SC4180 Transistor (NPN) C X X:Rank B E Marking and pin assignment SOT-323 top view Schematic...

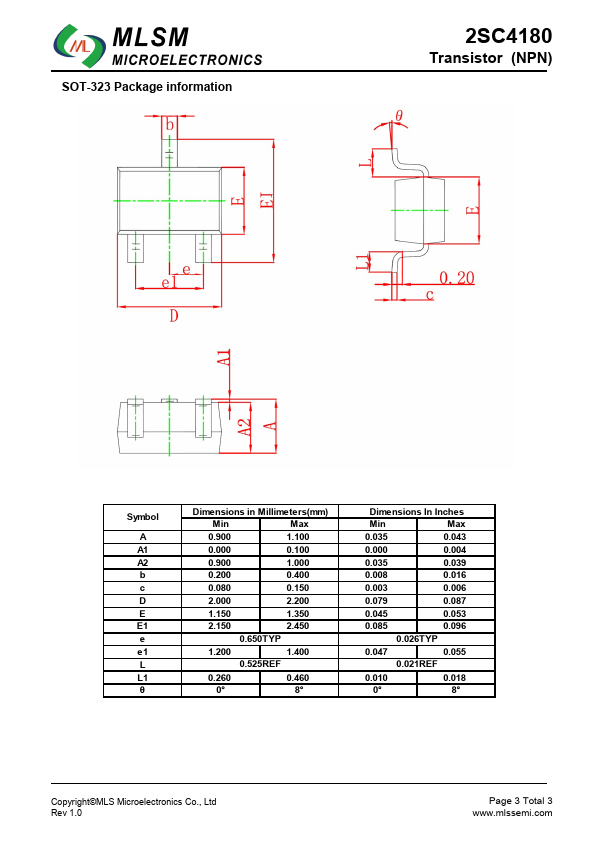

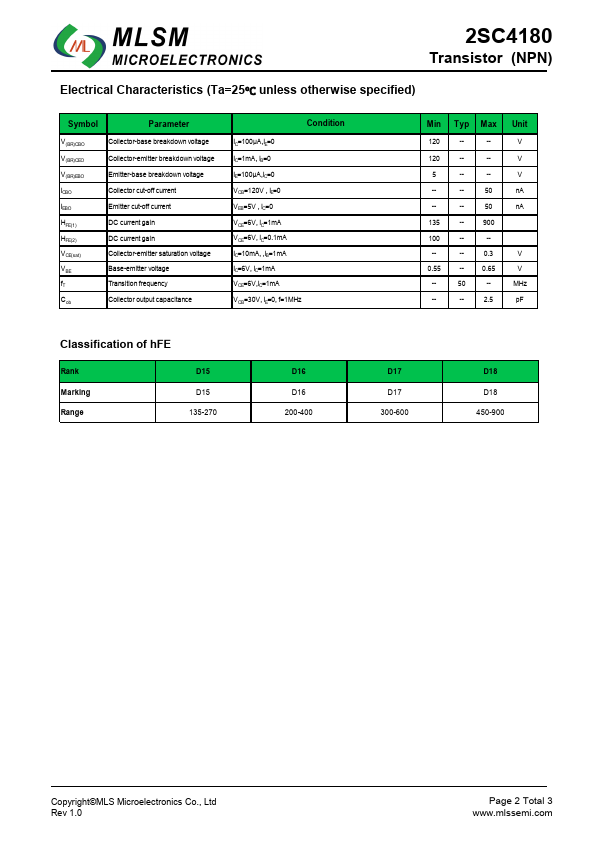

View more extracted text
) C X X:Rank B E Marking and pin assignment SOT-323 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value 120 120 5 50 150 833 -55~+150 Unit V V V mA mW °C/W °C Ordering Information (Example) Type 2SC4180 Package Marking Minimum Package(pcs) SOT-323 D15/D16/D17/D18 3,000 Inner Box Quantity(pcs) 45,000 Outer Carton Quantity(pcs) 180,000 Deliv
2SC4180 Datasheet
