2SC4215 - NPN Transistor

Key Features

  • Small reverse transfer capacitance: Cre= 0.55pF(typ. ).

📥 Download Datasheet

Datasheet Details

Part number 2SC4215
Manufacturer MLSM
File Size 627.58 KB
Description NPN Transistor
Datasheet download datasheet 2SC4215 Datasheet

📁 Similar Datasheet

Brand Logo Part Number Description Manufacturer
GME Logo 2SC4215 NPN Silicon Transistor GME
Toshiba Semiconductor Logo 2SC4215 Silicon NPN Transistor Toshiba Semiconductor
MCC Logo 2SC4215 NPN Silicon Epitaxial Transistors MCC
Inchange Semiconductor Logo 2SC4215 Silicon NPN Transistor Inchange Semiconductor
Kexin Logo 2SC4215 Silicon NPN Transistor Kexin

More Datasheets from MLSM

Part Number Description
2SC4102 NPN Transistor
2SC4115 NPN Transistor
2SC4116 NPN Transistor
2SC4177 NPN Transistor
2SC4180 NPN Transistor
2SC4738 NPN Transistor
2SC3930 NPN Transistor

Full PDF Text Transcription for 2SC4215 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for 2SC4215. For precise diagrams, tables, and layout, please refer to the original PDF.

Features • Small reverse transfer capacitance: Cre= 0.55pF(typ.) Applications • Low noise figure: NF...

View more extracted text

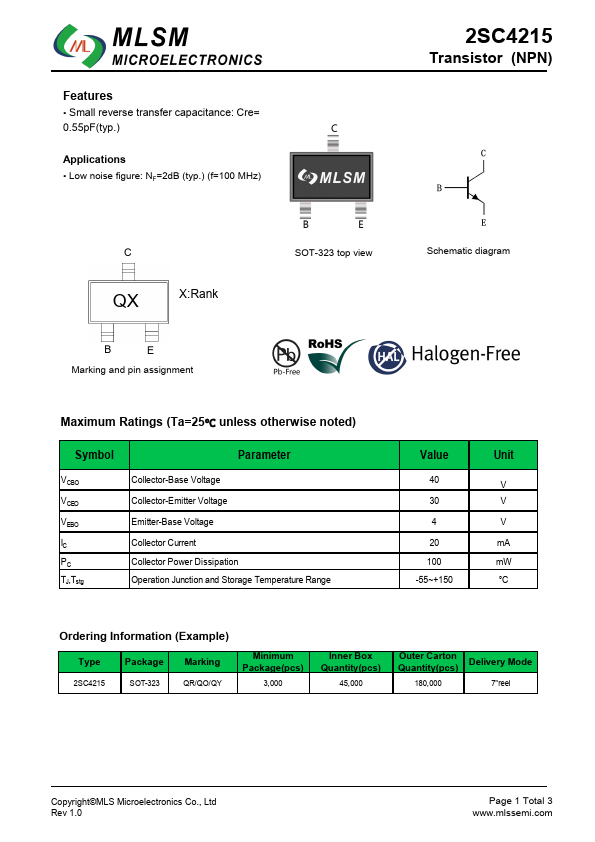

=2dB (typ.) (f=100 MHz) 2SC4215 Transistor (NPN) C QX X:Rank B E Marking and pin assignment SOT-323 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit 40 V 30 V 4 V 20 mA 100 mW -55~+150 °C Ordering Information (Example) Type 2SC4215 Package SOT-323 Marking QR/QO/QY Minimum Package(pcs) 3,000 Inner Box Quantity(pcs) 45,000 Outer Carton Quantity(pcs) 180,000 Delivery Mode 7"reel Copyright©MLS Microelectronics Co.
