MLSM 2SD2118
NPN Transistors
| Part No. | 2SD2118 |
|---|---|
| Datasheet | 2SD2118 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistors |
| Buy | Stock & Price |

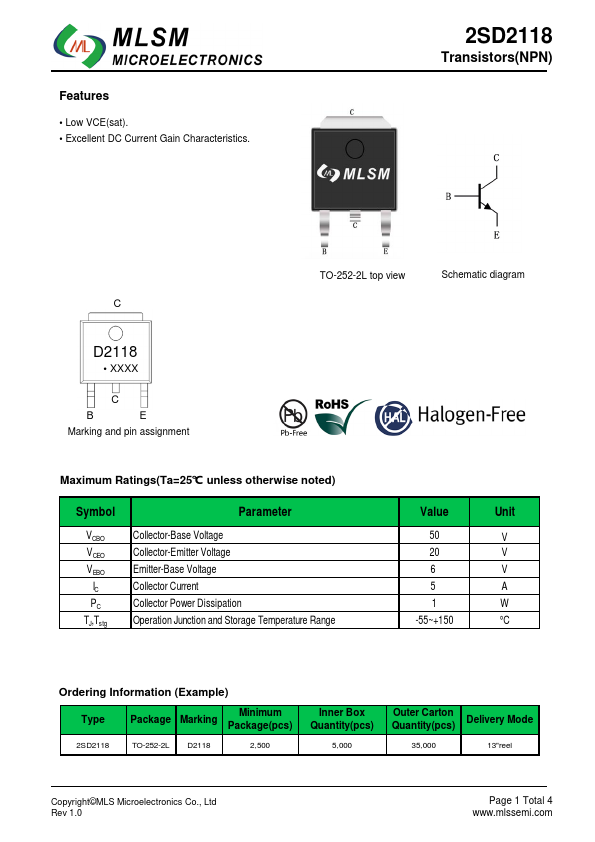

FEATURES
● Low VCE(sat).● Excellent DC Current Gain Characteristics. 2SD2118 Transistors(NPN) TO-252-2L top view Schematic diagram C D2118
● XXXX C B E Marking and pin assignment
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit 50 V 20 V 6 V 5 A 1 W -55~+150 °C Ordering Information (Example) Type Package Marking Minimum Package(pcs) 2SD2118 TO-252-2L D2118 2,500 Inner Box Quantity(pcs) 5,000 Outer Carton Quantity(pcs) Delivery Mode 35,000 13"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4 2SD2118 Transistors(NPN)ELECTRICAL CHARACTERISTICS

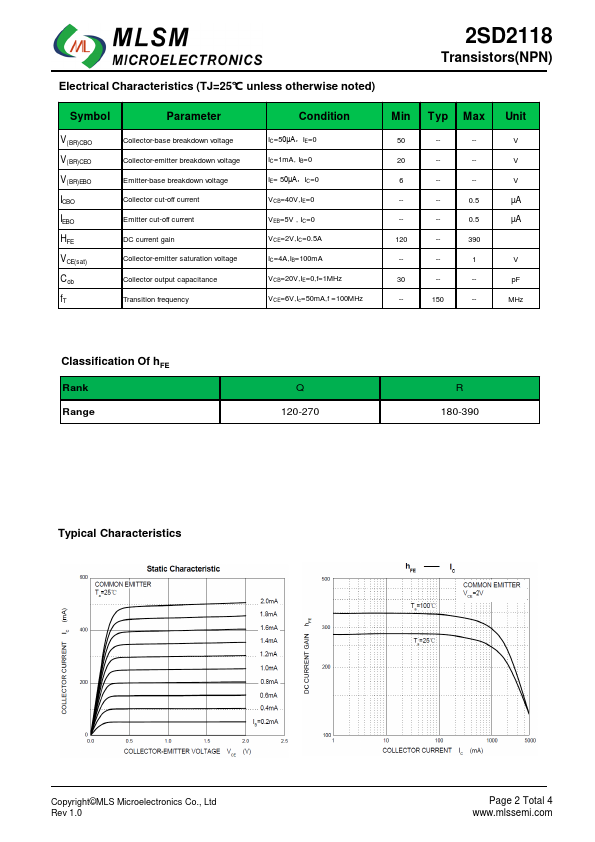

(TJ=25℃ unless otherwise noted) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE VCE(sat) Cob fT Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collect...
