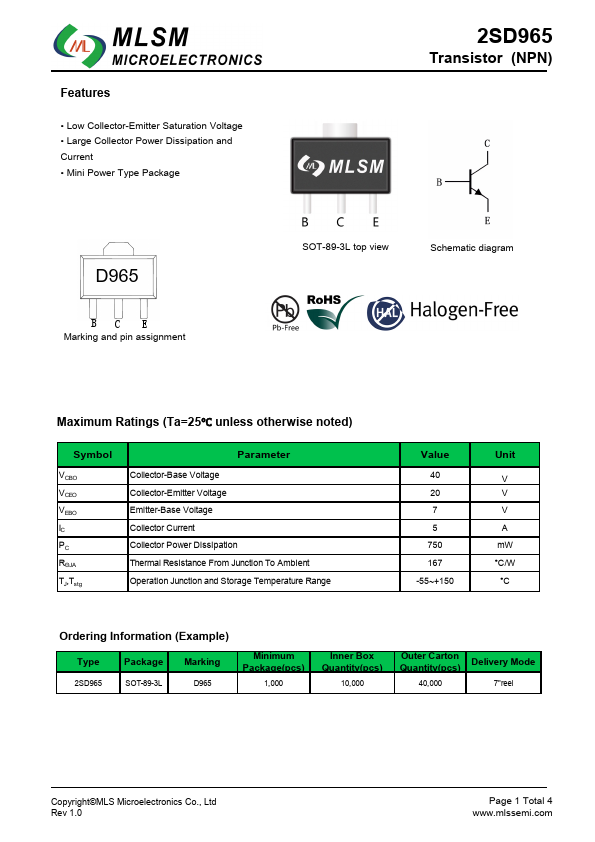

Datasheet Summary
Features
- Low Collector-Emitter Saturation Voltage
- Large Collector Power Dissipation and Current
- Mini Power Type Package
Transistor (NPN)
X:Rank
D965
BC E
Marking and pin assignment
SOT-89-3L top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
40 20 7 5 750 167 -55~+150
Unit
V V V A mW °C/W °C
Ordering Information (Example)
Type
Package
SOT-89-3L
Marking
D965

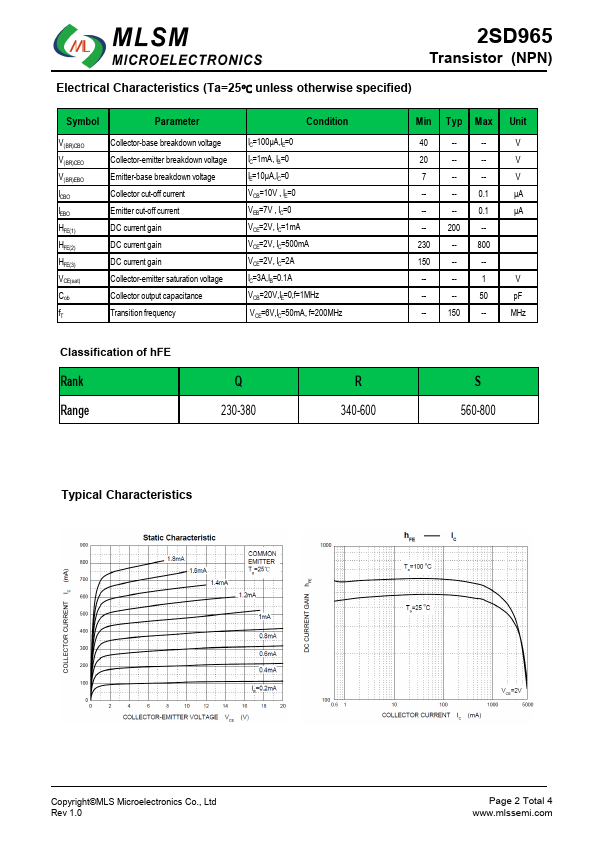

Minimum...
