MLSM BCX19
NPN Transistor
| Part No. | BCX19 |
|---|---|
| Datasheet | BCX19 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |
FEATURES

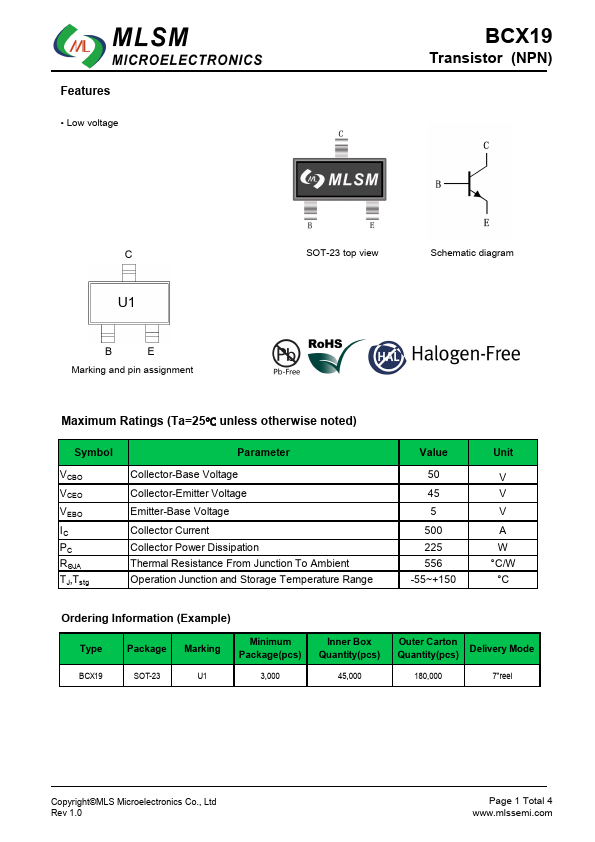

● Low voltage BCX19 Transistor (NPN) C U1 B E Marking and pin assignment SOT-23 top view Schematic diagramMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value 50 45 5 500 225 556 -55~+150 Unit V V V A W °C/W °C Ordering Information (Example) Type Package Marking Minimum Package(pcs) BCX19 SOT-23 U1 3,000 Inner Box Quantity(pcs) 45,000 Outer Carton Quantity(pcs) Delivery Mode 180,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4 BCX19 Transistor (NPN)ELECTRICAL CHARACTERISTICS

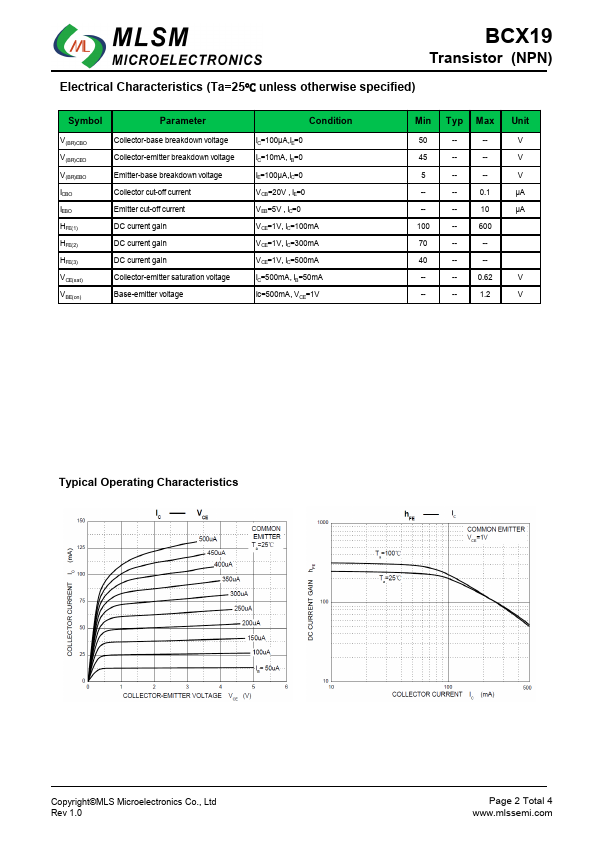

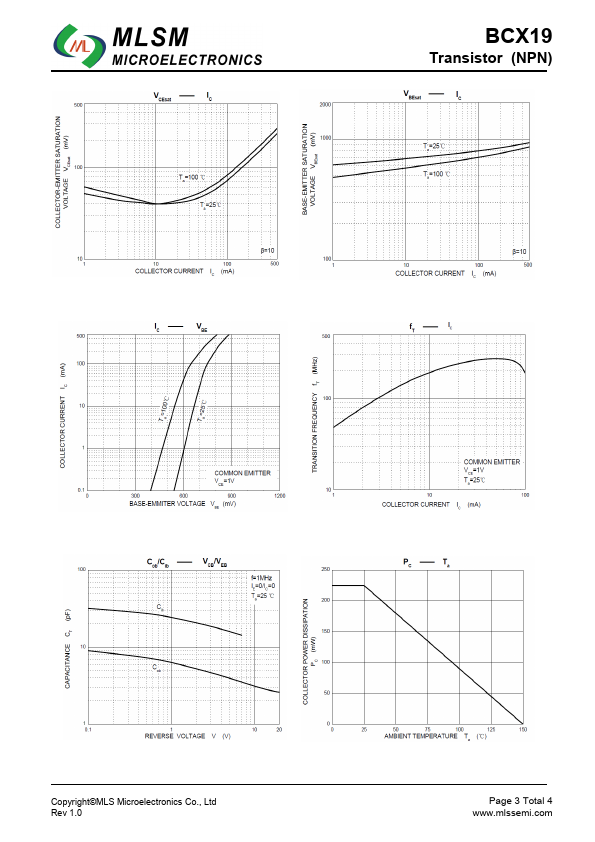

(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE(1) HFE(2) HFE(3) VCE(sat) VBE(on) Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown vol...
