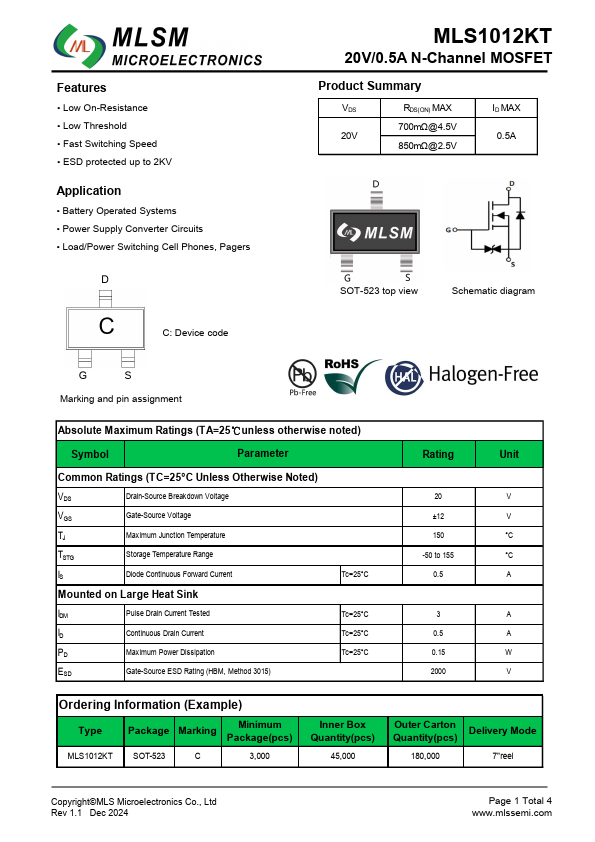

MLS1012KT
MLS1012KT is N-Channel MOSFET manufactured by MLS Microelectronics.
Features
- Low On-Resistance
- Low Threshold
- Fast Switching Speed
- ESD protected up to 2KV
Application
- Battery Operated Systems
- Power Supply Converter Circuits
- Load/Power Switching Cell Phones, Pagers
C: Device code
20V/0.5A N-Channel MOSFET
Product Summary
RDS(ON) MAX
20V
700mΩ@4S1.5DV2
850mΩD@1 2.5V
ID MAX 0.5A
SOT-523 top view
Schematic diagram
Marking and pin...
