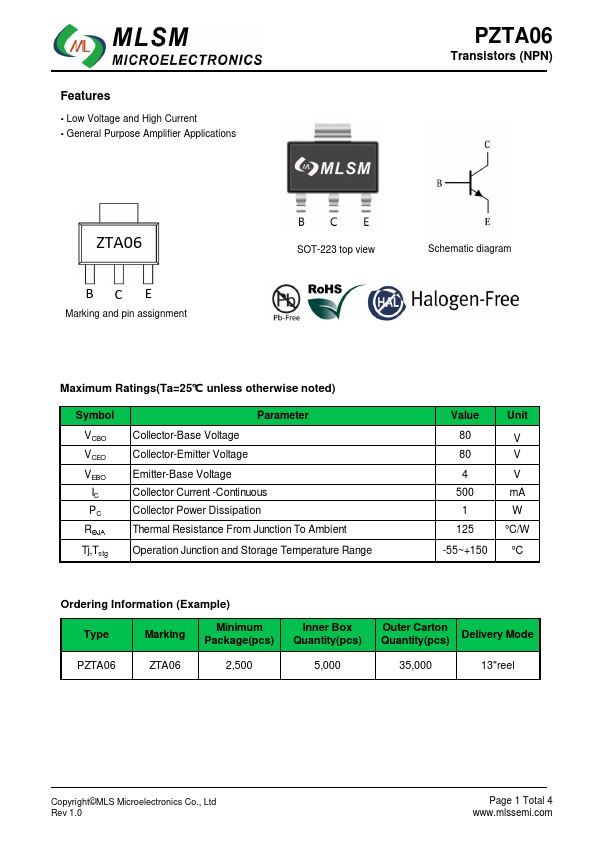

Datasheet Summary
Features
- Low Voltage and High Current
- General Purpose Amplifier Applications
Transistors (NPN)
D2
ZTA06
BC E
Marking and pin assignment
SOT-223 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol VCBO VCEO VEBO IC PC RΘJA Tj,Tstg
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value 80 80 4 500 1 125
-55~+150
Unit
V V V mA W °C/W °C
Ordering Information (Example)
Type
Marking
Minimum Package(pcs)
ZTA06
2,500
Inner Box Quantity(pcs)
5,000
Outer...
