RB715F
RB715F is SCHOTTKY BARRIER DIODE manufactured by MLS Microelectronics.

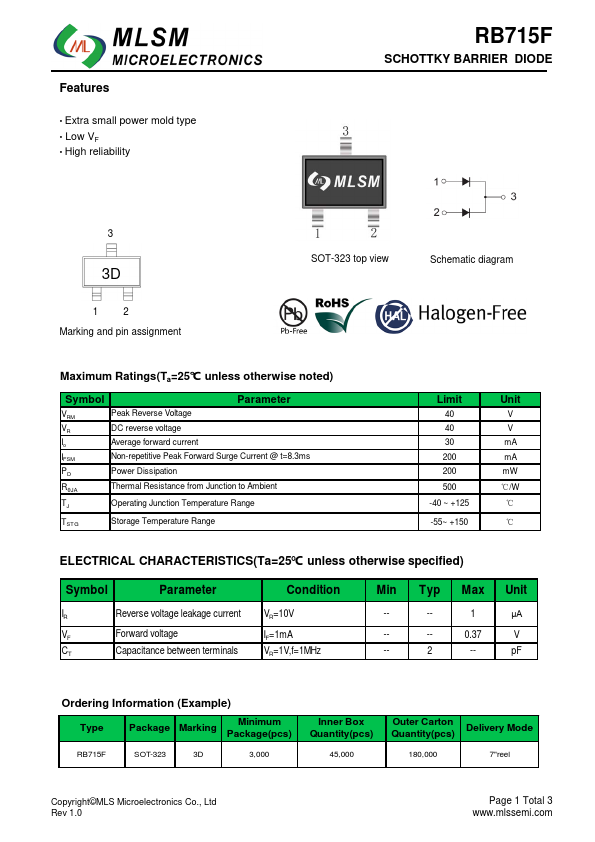

Features
- Extra small power mold type
- Low VF
- High reliability
SCHOTTKY BARRIER DIODE
3D
12 Marking and pin assignment

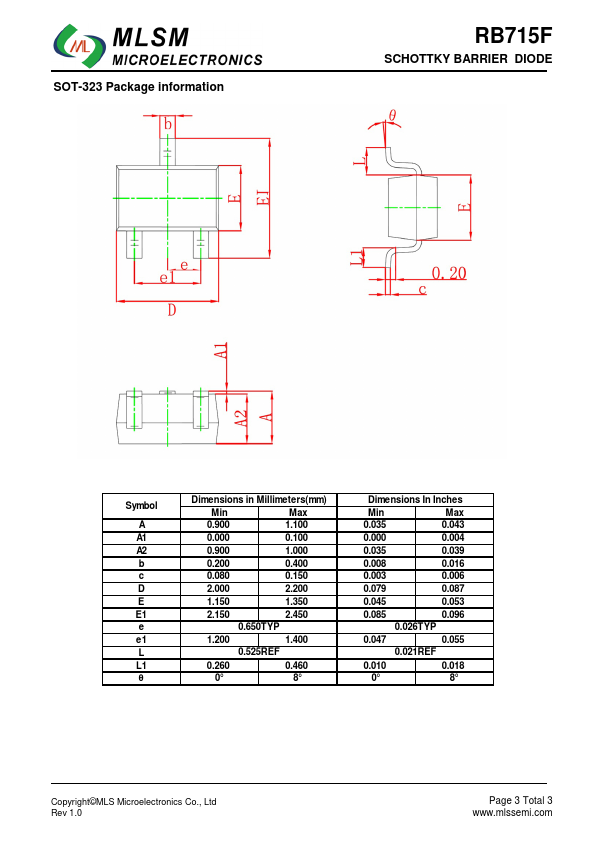

SOT-323 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
Peak Reverse Voltage
DC reverse voltage
Io
Average forward current
IFSM
Non-repetitive Peak Forward Surge Current @ t=8.3ms
Power Dissipation
RθJA
Thermal Resistance from Junction to Ambient
Operating Junction Temperature Range
TST G
Storage Temperature Range
Limit
40 40 30 200 200 500 -40 ~ +125
-55~ +150
Unit
V V m A m A m W ℃/W ℃
℃

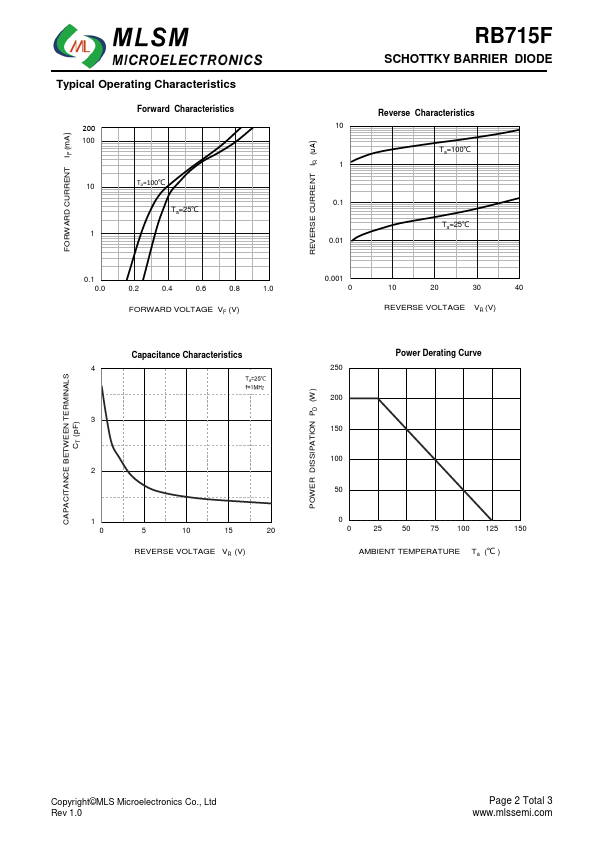

ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Symbol
Parameter
Reverse voltage leakage...
