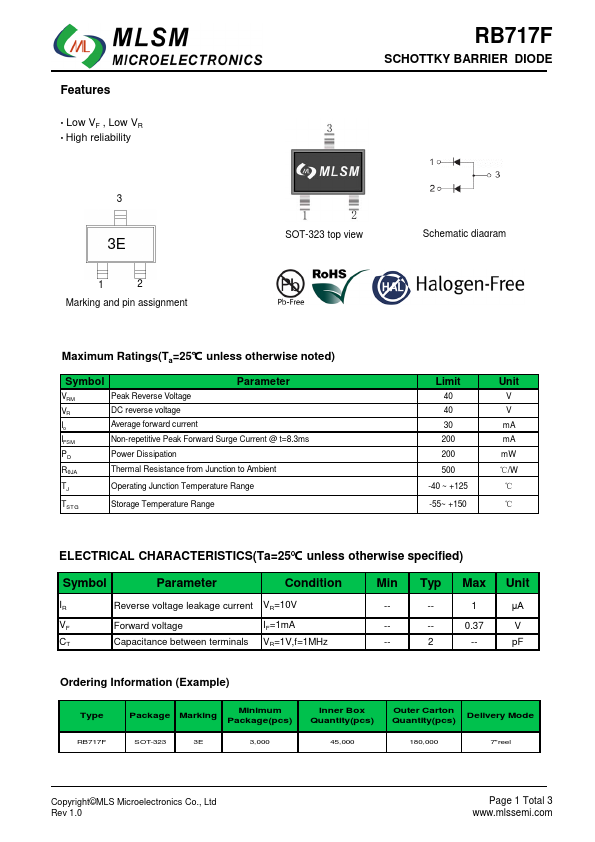

RB717F
RB717F is SCHOTTKY BARRIER DIODE manufactured by MLS Microelectronics.
Features
- Low VF , Low VR
- High reliability
SCHOTTKY BARRIER DIODE
3E
Marking and pin assignment
SOT-323 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
Peak Reverse Voltage
DC reverse voltage
Io
Average forward current
IFSM
Non-repetitive Peak Forward Surge Current @ t=8.3ms
Power Dissipation
RθJA
Thermal Resistance from Junction to Ambient
Operating Junction Temperature Range
TST G
Storage Temperature Range
Limit
40 40 30 200 200 500 -40 ~ +125
-55~ +150
Unit
V V mA mA mW ℃/W ℃
℃
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise...
