AO4842 - Dual N-Channel MOSFET

General Description

The AO4842-MSuses advanced trench technology to provide excellent RDS(ON) and low gate charge.

This device is suitable for use as a load switch or in PWM applications.

AO4842 dual n-channel mosfet by MSKSEMI - Datasheet Preview

Datasheet Details

Part number	AO4842
Manufacturer	MSKSEMI
File Size	830.02 KB
Description	Dual N-Channel MOSFET
Datasheet	AO4842 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AO4842	30V Dual N-Channel MOSFET	Alpha & Omega Semiconductors
AO4842	Dual N-Channel MOSFET	Kexin
AO4842	30V Dual N-Channel MOSFET	VBsemi
AO4840	60V Dual N-Channel MOSFET	VBsemi
AO4840	40V Dual N-Channel MOSFET	Alpha & Omega Semiconductors

Other Datasheets by MSKSEMI

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

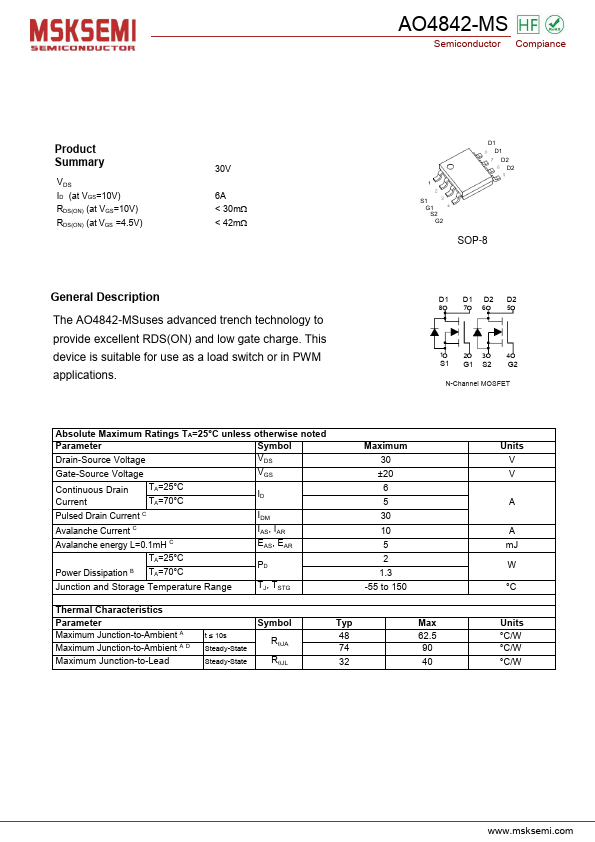

AO4842-MS Semiconductor Compiance Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS =4.5V) 30V 6A < 30m < 42m D1 D1 D2 D2 S1 G1 S2 G2 SOP-8 General Description The AO4842-MSuses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications. D1 D1 D2 D2 8 76 5 1 23 4 S1 G1 S2 G2 N-Channel MOSFET Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25°C ID Current TA=70°C Pulsed Drain Current C IDM Avalanche Current C IAS, IAR Avalanche energy L=0.
