AO4840 datasheet by VBsemi.
| Part number | AO4840 |
|---|---|
| Datasheet | AO4840-VBsemi.pdf |
| File Size | 236.68 KB |
| Manufacturer | VBsemi |
| Description | 60V Dual N-Channel MOSFET |
|
|

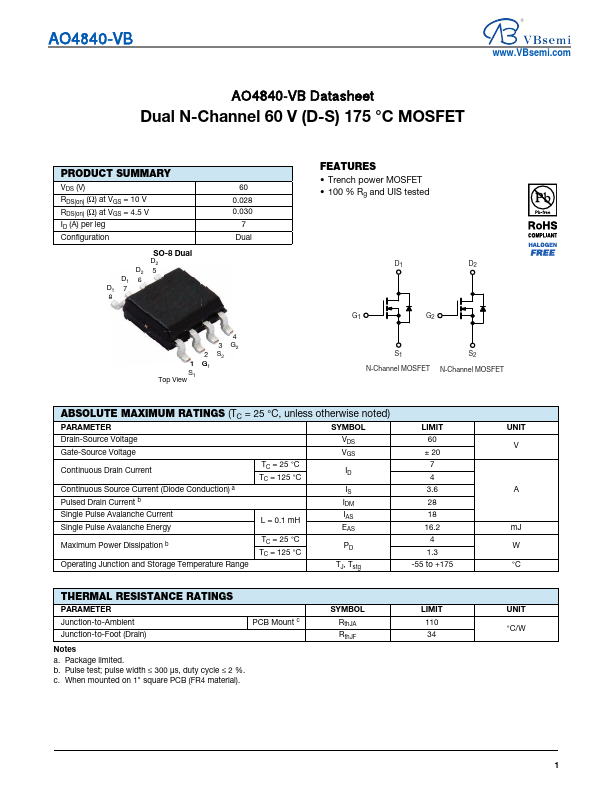

AO4840-VB .VBsemi. AO4840-VB Datasheet Dual N-Channel 60 V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) at VGS = 10 V RDS(on) (Ω) at VGS = 4.5 V ID (A) per leg Configuration SO-8 Dual D2 D2 5 D1 6 D1 7 8 60 0.028 0.030 7 Dual 4 3 G2 2 S2 1 G1 S1.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
AO4840 | 40V Dual N-Channel MOSFET | Alpha - Omega Semiconductors |
 |
AO4840 | Dual N-Channel MOSFET | Kexin |
| UMW | AO4840 | Dual 40V N-ChanneI MOSFET | UMW |
 |
AO4840 | 60V Dual N-Channel MOSFET | EVVOSEMI |
