AO4840 - Dual N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 40V.
  • ID = 6A (VGS = 10V).
  • RDS(ON) ＜ 30mΩ (VGS = 10V).
  • RDS(ON) ＜ 38mΩ (VGS = 4.5V) +0.04 0.21 -0.02 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 G1 G2 S1 S2.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy Power Dissipation Thermal Resistance. Junction- to-Ambient Thermal Resi.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4840 60V Dual N-Channel MOSFET VBsemi
AO4840 40V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4840 Dual 40V N-ChanneI MOSFET UMW
AO4840 60V Dual N-Channel MOSFET EVVOSEMI
AO4842 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
AO4842 Dual N-Channel MOSFET
AO4801 Dual P-Channel MOSFET
AO4803A Dual P-Channel MOSFET
AO4805 Dual P-Channel MOSFET
AO4806 Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

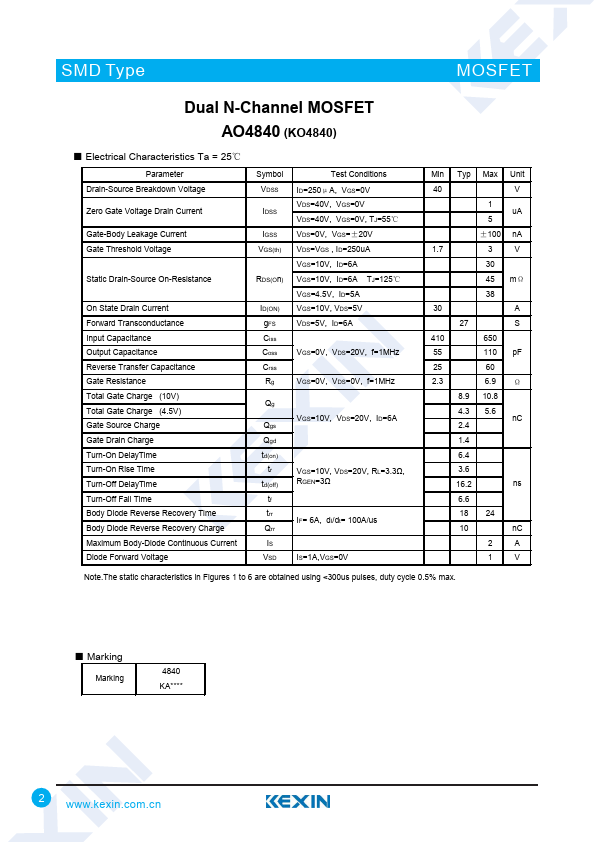

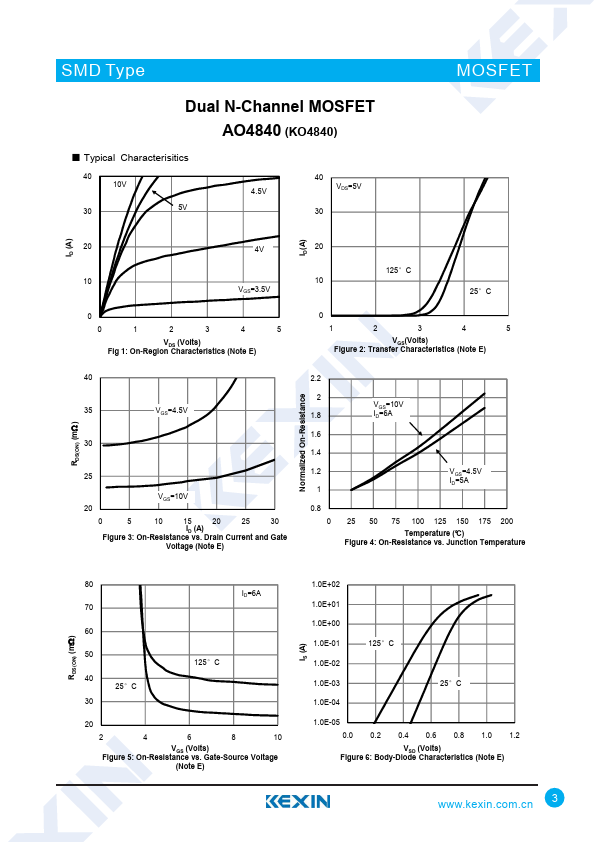

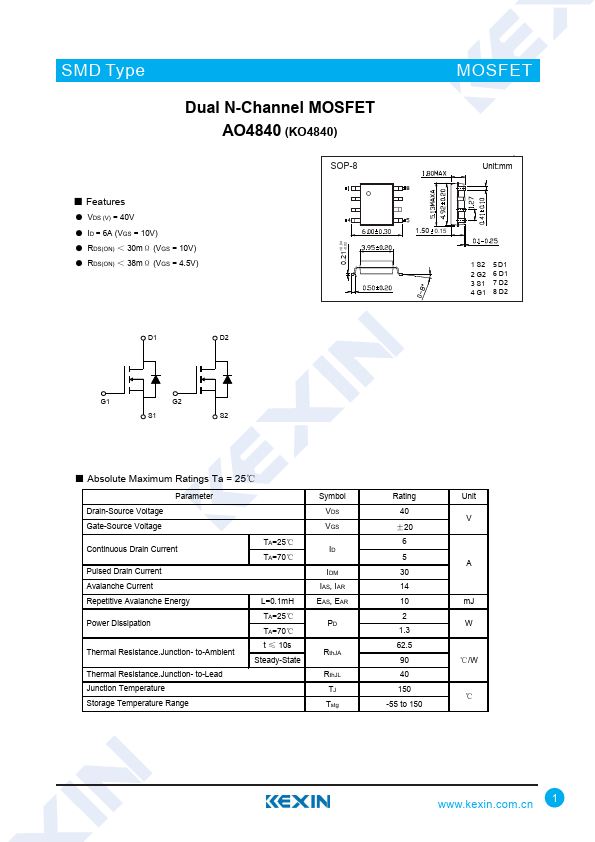

SMD Type Dual N-Channel MOSFET AO4840 (KO4840) SOP-8 ■ Features ● VDS (V) = 40V ● ID = 6A (VGS = 10V) ● RDS(ON) ＜ 30mΩ (VGS = 10V) ● RDS(ON) ＜ 38mΩ (VGS = 4.5V) +0.04 0.21 -0.02 MOSFET Unit:mm 1.50 0.15 1 S2 2 G2 3 S1 4 G1 5 D1 6 D1 7 D2 8 D2 D1 D2 G1 G2 S1 S2 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Avalanche Current TA=25℃ TA=70℃ Repetitive Avalanche Energy Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range L=0.1mH TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM IAS, IAR EAS, EAR PD RthJA RthJL TJ Tstg Rating 40 ±20 6 5 30 14 10 2 1.3 62.
