AO4840 - Dual 40V N-ChanneI MOSFET

General Description

SOURCE GATE DRAIN D1 S2 1 G2 2 S1 3 G1 4 8 D2 7 D2 6 D1 5 D1 Top View G1 S1 N-Channel D2 G2 S2 N-Channel 3.Absolute Maximum Ratings TC= 25°C Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Continuous Source Current (Diode Conduction) a Pulsed Drain Current b Si

Key Features

  • VDS (V)=40V ID=7A(VGS=10V) RDS(ON).

📥 Download Datasheet

Datasheet Details

Part number AO4840
Manufacturer UMW
File Size 208.92 KB
Description Dual 40V N-ChanneI MOSFET
Datasheet download datasheet AO4840 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4840 60V Dual N-Channel MOSFET VBsemi
AO4840 40V Dual N-Channel MOSFET Alpha & Omega Semiconductors
AO4840 Dual N-Channel MOSFET Kexin
AO4840 60V Dual N-Channel MOSFET EVVOSEMI
AO4842 30V Dual N-Channel MOSFET Alpha & Omega Semiconductors

Other Datasheets by UMW

Part Number Description
AO4803A -30V Dual P-Channel MOSFET
AO4807 -30V P-ChanneI MOSFET
AO4828 60V Dual N-ChanneI MOSFET
AO4832 30V Dual N-Channel MOSFET
AO4884 40V Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

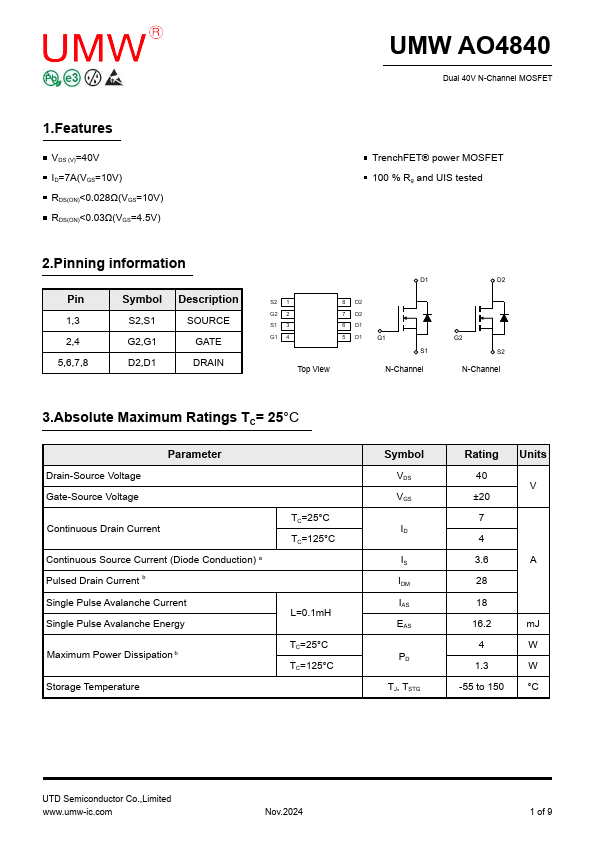

UMW AO4840 Dual 40V N-ChanneI MOSFET 1.Features VDS (V)=40V ID=7A(VGS=10V) RDS(ON)<0.028Ω(VGS=10V) RDS(ON)<0.03Ω(VGS=4.5V) TrenchFET® power MOSFET 100 % Rg and UIS tested 2.Pinning information Pin 1,3 2,4 5,6,7,8 Symbol S2,S1 G2,G1 D2,D1 Description SOURCE GATE DRAIN D1 S2 1 G2 2 S1 3 G1 4 8 D2 7 D2 6 D1 5 D1 Top View G1 S1 N-Channel D2 G2 S2 N-Channel 3.Absolute Maximum Ratings TC= 25°C Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Continuous Source Current (Diode Conduction) a Pulsed Drain Current b Single Pulse Avalanche Current Single Pulse Avalanche Energy Maximum Power Dissipation b Storage Temperature TC=25°C TC=125°C L=0.1mH TC=25°C TC=125°C Symbol VDS VGS ID IS IDM IAS EAS PD TJ, TSTG Rating 40 ±20 7 4 3.6 28 18 16.2 4 1.
