MX25L1026E - 1M-BIT [x 1/x 2] CMOS SERIAL FLASH

Macronix

Key Features

Datasheet Details

Part number	MX25L1026E
Manufacturer	Macronix
File Size	518.77 KB
Description	1M-BIT [x 1/x 2] CMOS SERIAL FLASH
Datasheet	MX25L1026E Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MX25L1021E	512K-BIT [x 1] CMOS SERIAL FLASH Memory	Macronix International
MX25L1025C	1M-BIT [x 1] CMOS SERIAL FLASH	Macronix International
MX25L1005	1M-BIT [x 1] CMOS SERIAL FLASH	Macronix International
MX25L12805D	128M-BIT [x 1] CMOS SERIAL FLASH	Macronix International
MX25L12845E	128M-BIT [x 1/x 2/x 4] CMOS MXSMIO (SERIAL MULTI I/O) FLASH MEMORY	Macronix International

Other Datasheets by Macronix

Part Number	Description
MX25L1006E	CMOS 1Mk-bit serial Flash memory
MX25L12833F	128M-BIT FLASH MEMORY
MX25L12835E	128M-BIT [x 1/x 2/x 4] CMOS MXSMIO
MX25L12835F	3V 128M-BIT [x 1/x 2/x 4] CMOS MXSMIO
MX25L12836E	FLASH MEMORY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

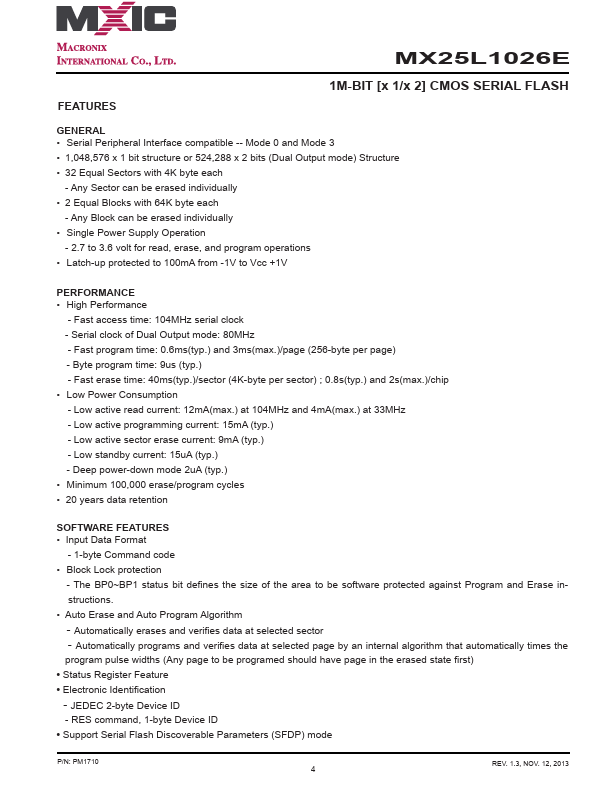

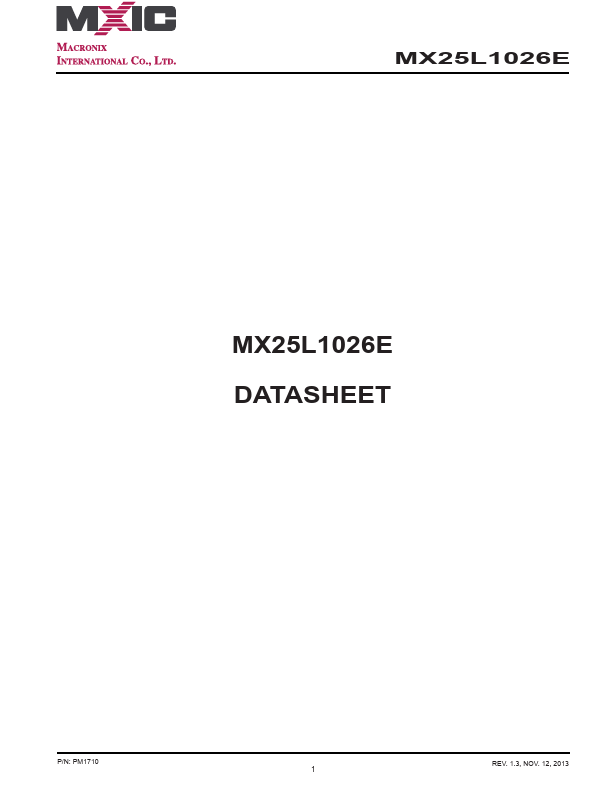

MX25L1026E MX25L1026E DATASHEET P/N: PM1710 REV. 1.3, NOV. 12, 2013 1 MX25L1026E Contents FEATURES................................................................................................................................................................... 4 GENERAL........................................................................................................................................................... 4 PERFORMANCE................................................................................................................................................ 4 SOFTWARE FEATURES.................................................................................................................................... 4 HARDWARE FEATURES........................................
