RB411D Datasheet 20v 0.5a Schottky Barrier Rectifier

Manufacturer: Micro Commercial Components

Overview: MCC TM Micro mercial ponents omponents 20736 Marilla Street Chatsworth !"# $ % !

Datasheet Details

Part number	RB411D
Manufacturer	Micro Commercial Components
File Size	195.15 KB
Description	20V 0.5A Schottky Barrier Rectifier
Datasheet	RB411D_MicroCommercialComponents.pdf

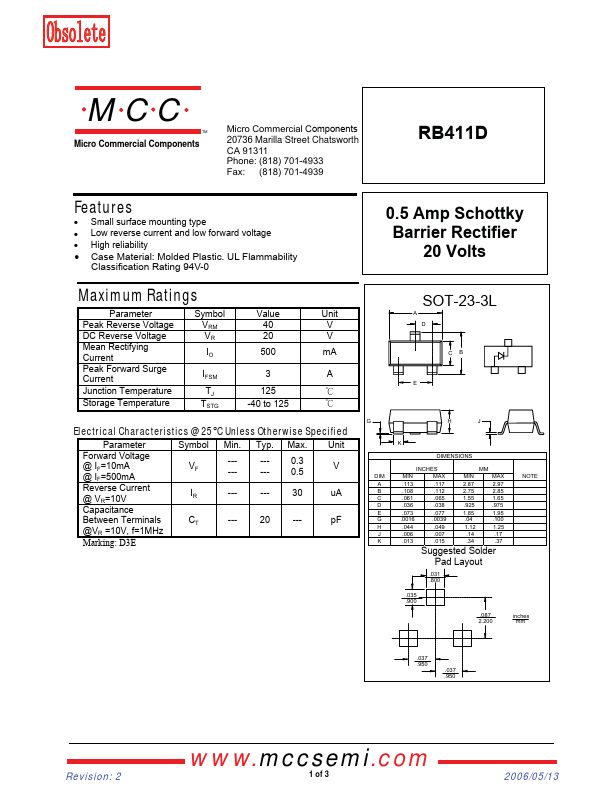

x Small surface mounting type x Low reverse current and low forward voltage x High reliability x Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 0.5 Amp Schottky Barrier Rectifier 20 Volts Maximum Ratings Parameter Symbol Value Unit Peak Reverse Voltage VRM 40 V DC Reverse Voltage VR 20 V Mean Rectifying Current IO 500 mA Peak Forward Surge Current IFSM 3 A Junction Temperature TJ 125 к Storage Temperature TSTG -40 to 125 к Electrical.

Part Number	Description	Other Manufacturers
RB411D	Schottky Barrier Diode	Kexin
RB411D	Schottky Barrier Diode	Pan Jit International
RB411D	SCHOTTKY BARRIER DIODE	JCET
RB411D	Schottky barrier diode	Rohm
RB411D	Silicon Schottky Barrier Diode	GOODARK

Part Number	Description
RB411	20 to 40 Volts 0.5 Amp Surface Mount Schottky Barrier Diode
RB400D	40V 0.5A Schottky Barrier Rectifier
RB420D	40 Volts 0.1 Amp Surface Mount Schottky Barrier Diode
RB421D	40V 0.1A Schottky Barrier Rectifier
RB490D	20 to 40 Volts 1Amp Surface Mount Schottky Barrier Diode
RB491D	20 to 40 Volts 1Amp Surface Mount Schottky Barrier Diode
