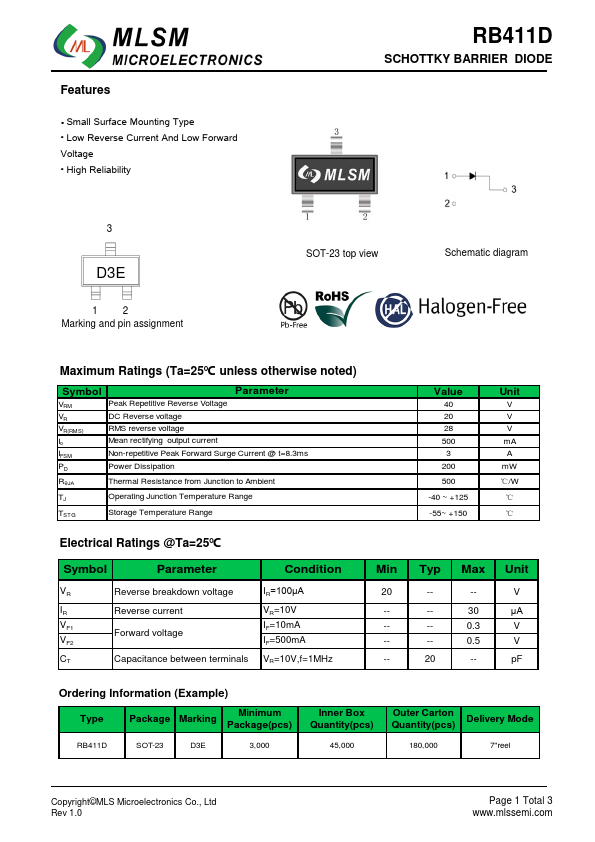

RB411D
RB411D is SCHOTTKY BARRIER DIODE manufactured by MLS Microelectronics.
Features
- Small Surface Mounting Type
- Low Reverse Current And Low Forward Voltage
- High Reliability
SCHOTTKY BARRIER DIODE
D3E
12 Marking and pin assignment
SOT-23 top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
VRM VR VR(RM S) Io IFSM
Peak Repetitive Reverse Voltage DC Reverse voltage RMS reverse voltage Mean rectifying output current Non-repetitive Peak Forward Surge Current @ t=8.3ms
Power Dissipation
RθJA
Thermal Resistance from Junction to Ambient
Operating Junction Temperature Range
TST G
Storage Temperature Range
Electrical Ratings @Ta=25℃
Symbol
Parameter
Condition
Reverse breakdown...
