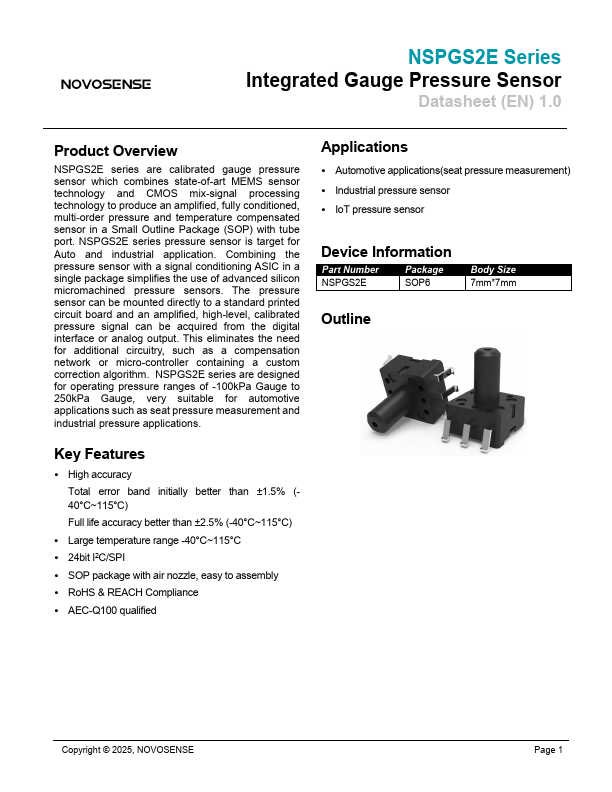

NSPGS2E Series Integrated Gauge Pressure Sensor Datasheet (EN) 1.0 Product Overview NSPGS2E series are calibrated gauge pressure sensor which bines state-of-art MEMS sensor technology and CMOS mix-signal processing technology to produce an amplified, fully conditioned, multi-order pressure and temperature pensated sensor in a Small Outline Package (SOP) with tube port. NSPGS2E series pressure sensor is target for Auto and industrial application. bining the pressure sensor with a signal conditioning ASIC in a single package simplifies the use of advanced silicon micromachined pressure sensors. The pressure sensor can be mounted directly to a standard printed circuit board and an amplified, high-level, calibrated pressure signal can be acquired from the digital interface or analog output. This eliminates the need for additional circuitry, such as a pensation network or micro-controller containing a custom correction algorithm. NSPGS2E series are designed for operating pressure ranges of -100k Pa Gauge to 250k Pa Gauge, very suitable for automotive applications such as seat pressure measurement and industrial pressure applications. Applications - Automotive applications(seat pressure measurement) - Industrial pressure sensor - Io T pressure sensor Device Information Part Number Package SOP6 Body Size 7mm- 7mm Outline Key Features - High accuracy Total error band initially better than ±1.5% (40°C~115°C) Full life accuracy better than ±2.5% (-40°C~115°C) - Large temperature range -40°C~115°C - 24bit I2C/SPI - SOP package with air nozzle, easy to assembly - Ro HS & REACH pliance - AEC-Q100 qualified Copyright © 2025, NOVOSENSE Page 1 NSPGS2E Series Datasheet (EN) 1.0 INDEX 1. PIN CONFIGURATION AND FUNCTIONS ...............................................................................................................3 2....
