NSPGS5 Datasheet | NOVOSENSE

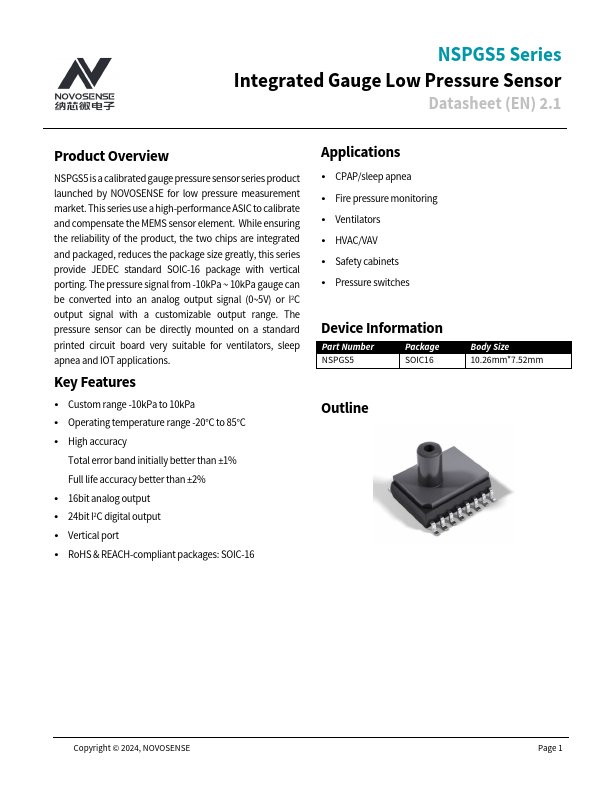

NSPGS5 Series Integrated Gauge Low Pressure Sensor Datasheet (EN) 2.1 Product Overview NSPGS5 is a calibrated gauge pressure sensor series product launched by NOVOSENSE for low pressure measurement market. This series use a high-performance ASIC to calibrate and pensate the MEMS sensor element. While ensuring the reliability of the product, the two chips are integrated and packaged, reduces the package size greatly, this series provide JEDEC standard SOIC-16 package with vertical porting. The pressure signal from -10k Pa ~ 10k Pa gauge can be converted into an analog output signal (0~5V) or I2C output signal with a customizable output range. The pressure sensor can be directly mounted on a standard printed circuit board very suitable for ventilators, sleep apnea and IOT applications. Key Features - Custom range -10k Pa to 10k Pa - Operating temperature range -20°C to 85°C - High accuracy Total error band initially better than ±1% Full life accuracy better than ±2% - 16bit analog output - 24bit I2C digital output - Vertical port - Ro HS & REACH-pliant packages: SOIC-16 Applications - CPAP/sleep apnea - Fire pressure monitoring - Ventilators - HVAC/VAV - Safety cabinets - Pressure switches Device Information Part Number NSPGS5 Package SOIC16 Outline Body Size 10.26mm- 7.52mm Copyright © 2024, NOVOSENSE Page 1 NSPGS5 Series Datasheet (EN)...
