2N5551 - NPN Amplifier

onsemi

General Description

This device is designed for general purpose high

amplifiers and gas discharge display drivers.

Key Features

These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant.

📥 Download Datasheet

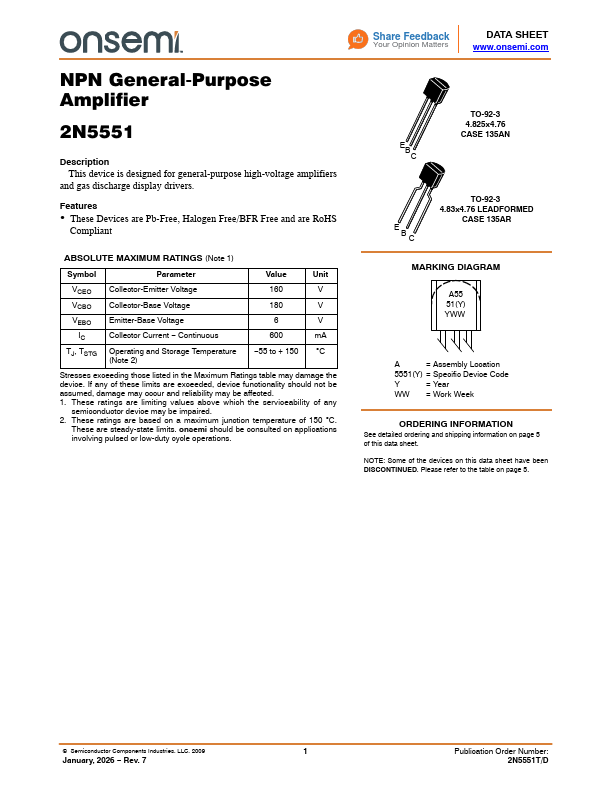

2N5551 npn amplifier by onsemi - Datasheet Preview

Datasheet Details

Part number	2N5551
Manufacturer	onsemi
File Size	208.34 KB
Description	NPN Amplifier
Datasheet	2N5551 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2N5551	Silicon NPN Transistor	NTE
2N5551	Amplifier Transistors	Motorola
2N5551	NPN General Purpose Amplifier	Fairchild Semiconductor
2N5551	NPN Transistor	SeCoS
2N5551	Bipolar Transistor	Multicomp

Other Datasheets by onsemi

Part Number	Description
2N5551BU	NPN Amplifier
2N5551TA	NPN Amplifier
2N5551TF	NPN Amplifier
2N5550	Amplifier Transistor
2N5555	Switching JFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

NPN General-Purpose Amplifier 2N5551 Description This device is designed for general−purpose high−voltage amplifiers and gas discharge display drivers. Features • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant ABSOLUTE MAXIMUM RATINGS (Note 1) Symbol Parameter Value Unit VCEO Collector−Emitter Voltage 160 V VCBO Collector−Base Voltage 180 V VEBO Emitter−Base Voltage 6 V IC Collector Current − Continuous 600 mA TJ, TSTG Operating and Storage Temperature −55 to + 150 °C (Note 2) Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1.
